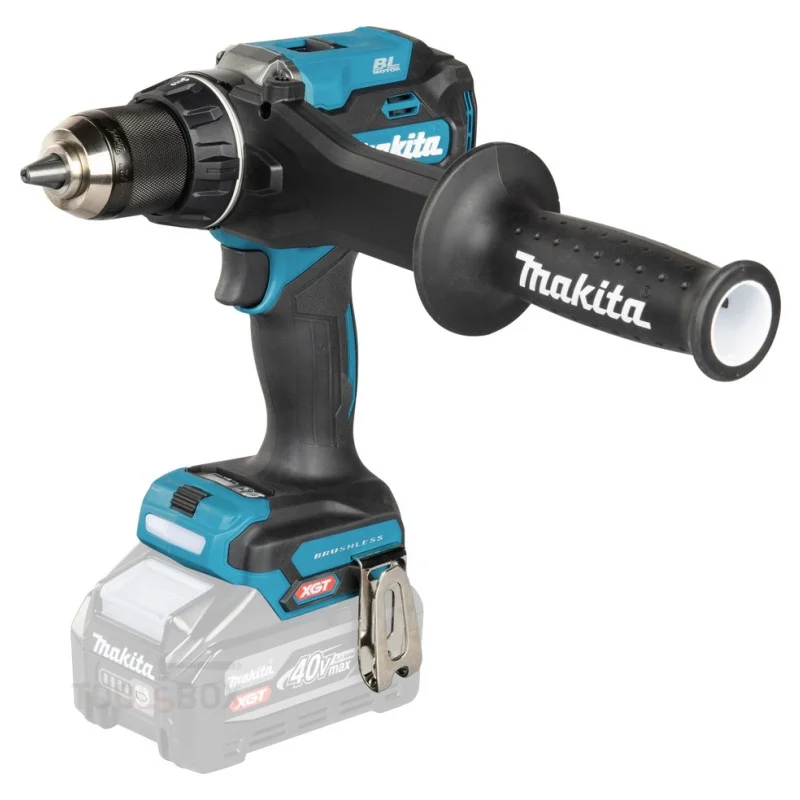

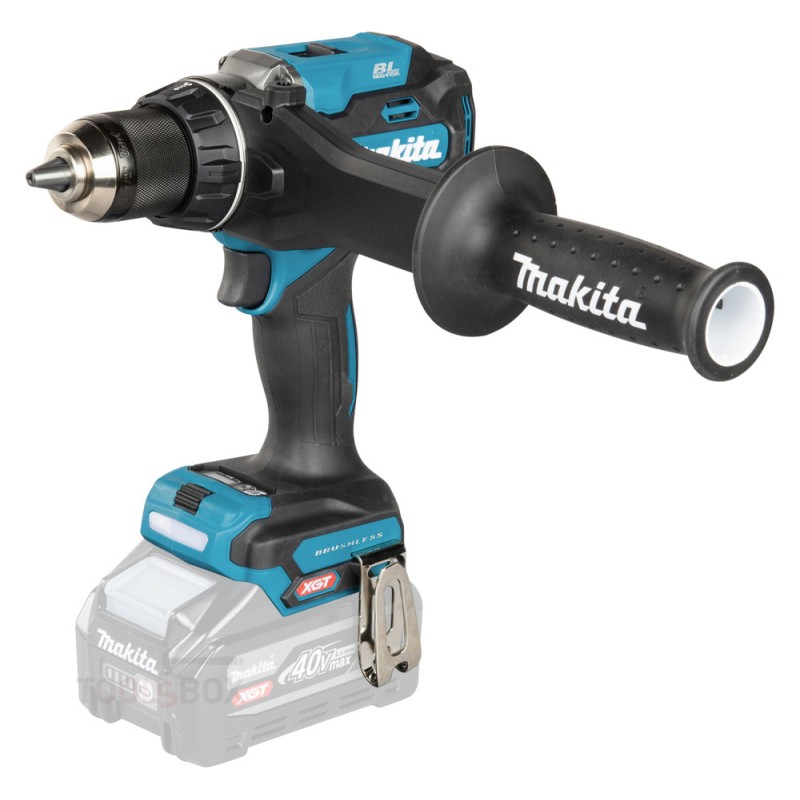

Makita DF003GZ Cordless Drill Driver, XGT, 40 V max, 180 Nm

Makita DF003GZ Cordless Drill Driver, XGT, 40 V max, 180 Nm

The Makita DF003GZ is a cordless drill driver on the XGT 40 V max platform with a brushless motor and 180 Nm of maximum torque. The "Z" suffix means the tool ships without battery and without charger.

Three speeds rather than two

This is the main difference from an ordinary drill driver. Alongside the low and high gears the machine has a medium setting - 0 - 1800 rpm - combining torque and speed. It is precisely what two-speed machines lack, and it shows when driving long screws, where low gear is slow and high gear stalls under load. The full range is 0 - 650 / 0 - 1800 / 0 - 2400 rpm.

Electronic clutch with up to 41 settings

The clutch is electronic and the number of settings changes with the selected gear - 25 in high, 30 in medium and 41 in low. That gives far finer control than a mechanical clutch and allows repeatable driving to the same torque in soft material.

Capacity and protection

The tool drills up to 20 mm in steel and 50 mm in wood with an auger bit. The keyless chuck takes 13 mm. XPT technology protects the internals against dust and moisture when working outdoors and in dusty conditions.

Who it is for

The DF003GZ suits tradespeople already on the XGT platform who need a driver with torque approaching that of a small impact wrench - timber framing, heavy screws, large auger holes and drilling in metal. At 40 V and 180 Nm it takes over applications that would otherwise call for an angle drill or a corded machine.

Dimensions and equipment

Length is 196 mm and weight without a battery 2.1 kg. The delivery includes a side handle, a hanging hook, a bit holder and a double-ended bit. Battery and charger are not included.

Technical specifications

Equipment

• 1 x Makita DF003GZ drill driver
• Side handle
• Hanging hook
• Bit holder
• Double-ended bit
• Without battery and without charger
