Milwaukee M18FCS66-121C / 190 mm cordless brushless handheld circular saw - 4933464586

Manufacturer

: Milwaukee

Model:

M18FCS66-121C

Warranty:

3 years after registration on the website

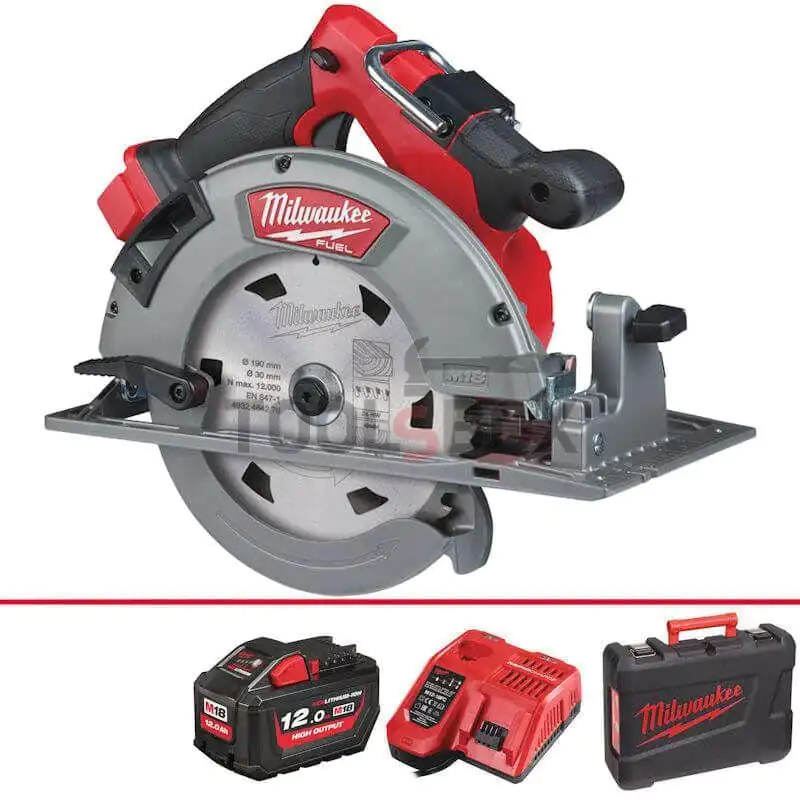

Comes with 1 x 12.0Ah lithium-ion battery, quick charger, and carrying case.

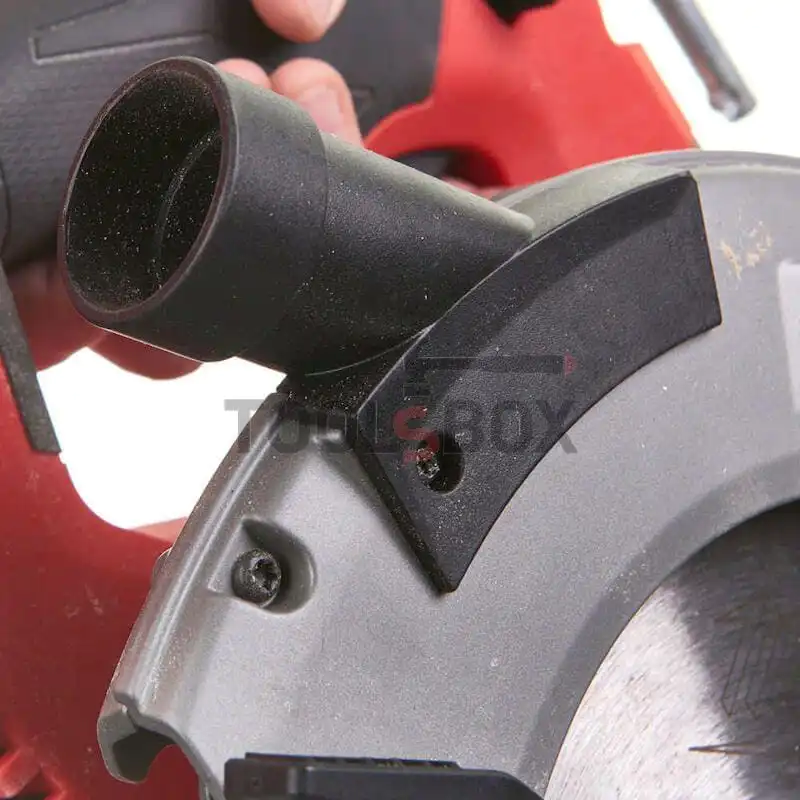

The next-generation REDLINK PLUSTM intelligence system provides advanced digital overload protection for the tool and battery and uniquely enhances tool performance under load. The M18 FUELTM circular saw delivers the cutting power of a 12.0Ah battery-powered circular saw at the same feed rate-capable of cutting 750 pieces of 90 mm x 45 mm lumber on a single 12.0Ah battery charge. Next-generation POWERSTATETM brushless motor: this is Milwaukee®'s most powerful motor, utilizing higher-grade magnets and 175% more copper compared to previous motors. 56° bevel capacity. A 190 mm blade provides a 66 mm cutting depth, allowing the saw to cut through 3 stacked OSB boards. The new REDLITHIUM-IONTM HIGH OUTPUTTM 12.0 Ah battery pack features superior pack design, electronics, and fade-free performance to deliver more runtime per charge than any other Milwaukee® battery. The included vacuum adapter fits directly onto all Milwaukee® dust collectors.

Durable metal hanging hook for shelf mounting to help manage the workspace and ensure safety.

The magnesium shoe reduces weight and increases durability.

Technical Specifications:

Battery Capacity: 12.0 Ah

Battery Type: Li-ion

Blade Diameter: 190 mm

Blade Teeth: 24

Blade thickness: 1.6 mm

Bore size: 30 mm

Charging time: 130 min

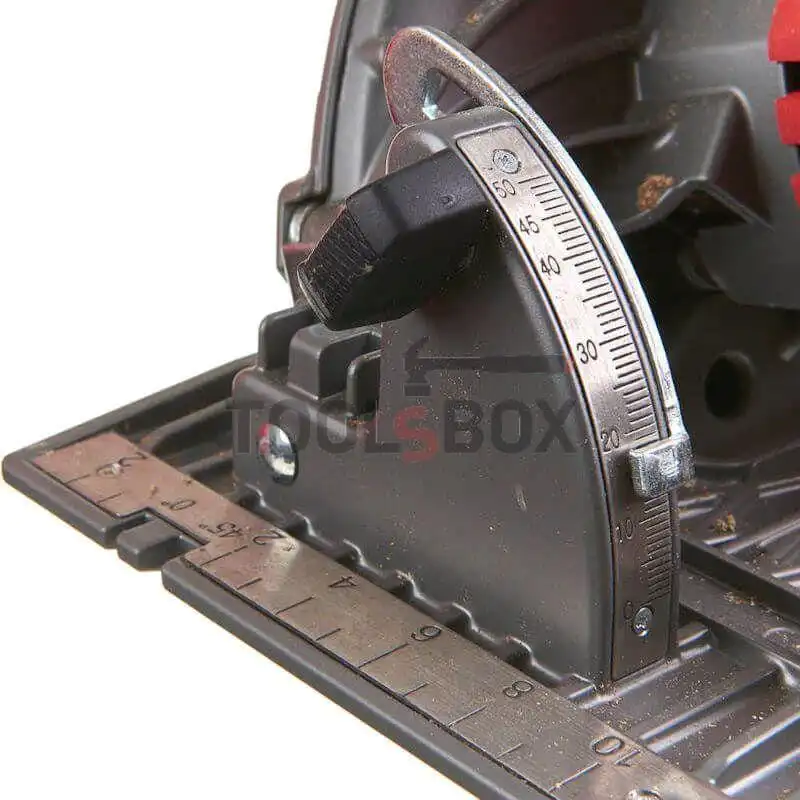

Max. bevel: 56°

No-load speed: 5800 rpm

Number of batteries included: 1

Sound power level: 104.5 dB(A)

Vibration level uncertainty (wood cutting): 1.5 m/s2

Sound power level uncertainty: 3 dB(A)

Sound pressure level: 93.5 dB (A)

Sound pressure level uncertainty: 3 dB(A)

Max. cutting depth (@ 0°): 66 mm

Max. cutting depth (@ 45°): 48 mm

Max. cutting depth (@ 56°): 43 mm

Vibration level (wood cutting): 1.8 m/s2

Voltage: 18V

Weight (with battery): 5.4 kg
