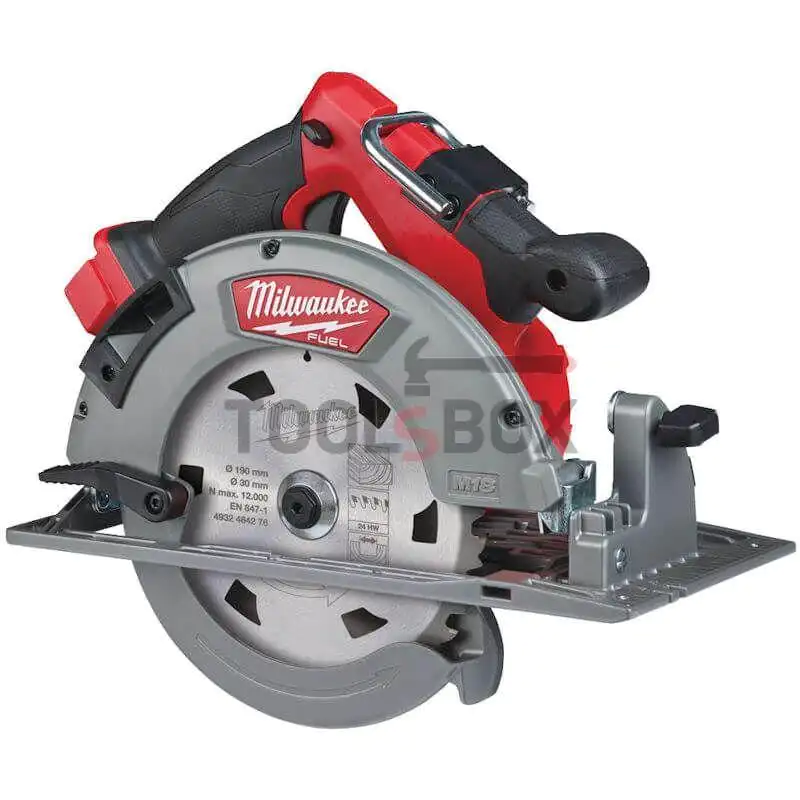

Milwaukee M18FCS66-0 / 190 mm cordless handheld circular saw

Manufacturer

: Milwaukee

Model:

M18FCS66-0

Warranty:

3 years after registration on the website

Shipped as a bare tool ONLY-batteries and charger NOT included.

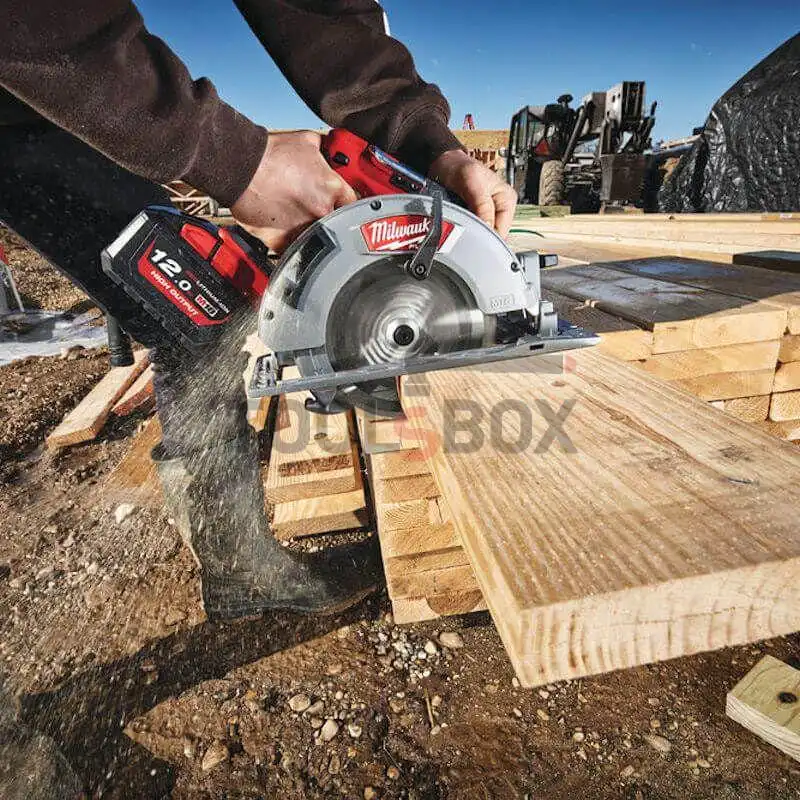

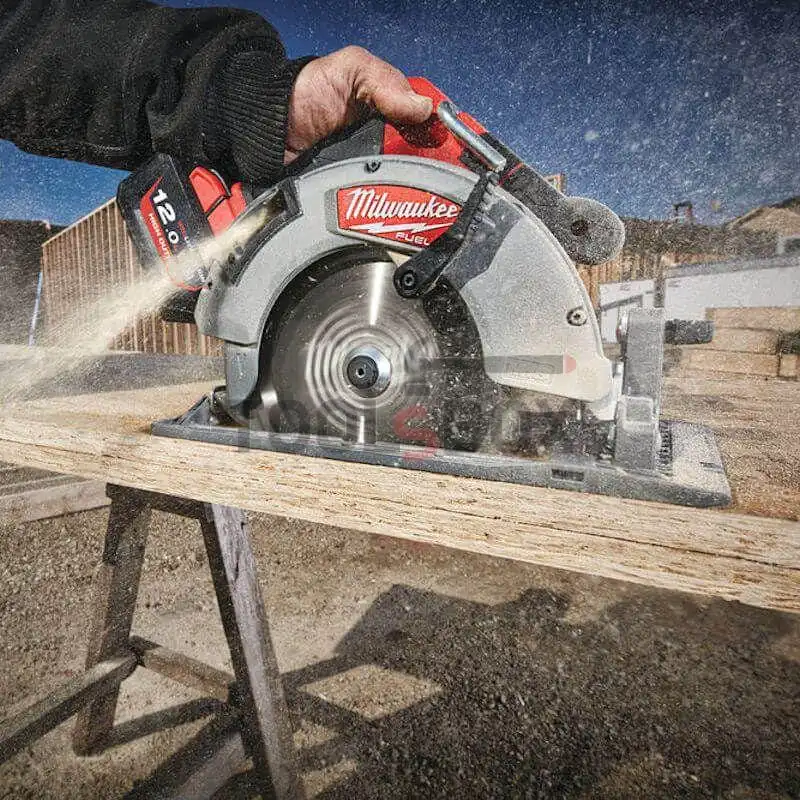

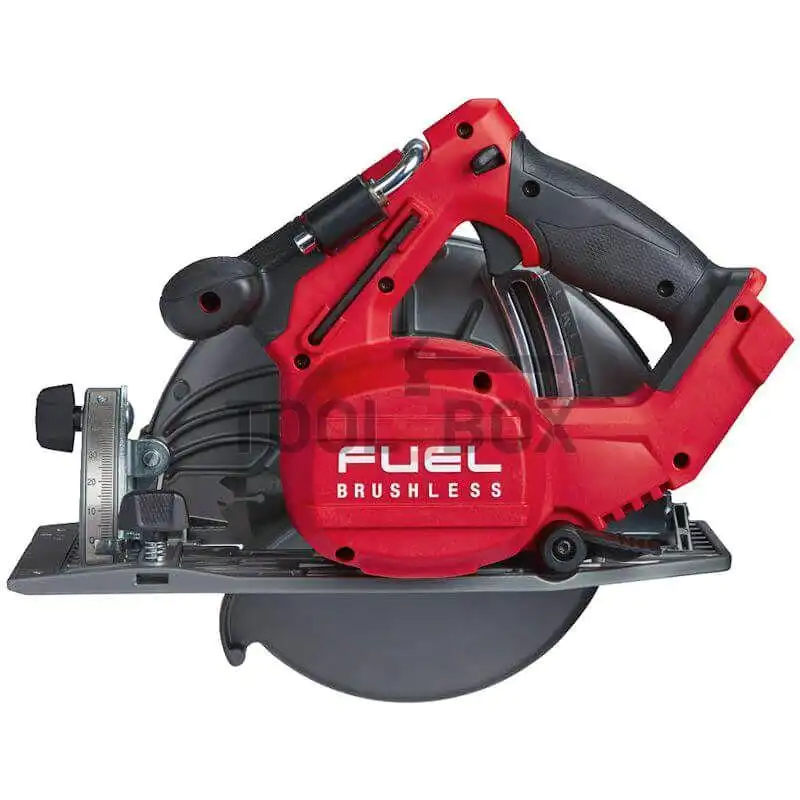

The M18 FUELTM circular saw delivers the cutting power of a comparable AC circular saw at the same feed rate-capable of cutting 750 pieces of 90 mm x 45 mm lumber on a single charge of the 12.0 Ah battery. Next-generation POWERSTATETM brushless motor: this is Milwaukee®'s most powerful motor, utilizing higher-grade magnets and 175% more copper compared to previous motors. The magnesium shoe reduces weight and increases durability. Built-in LED light to illuminate the work area. 56° bevel capacity. The next-generation REDLINK PLUSTM intelligence system provides advanced digital overload protection for the tool and battery and uniquely enhances tool performance under load.

The new REDLITHIUM-IONTM HIGH OUTPUTTM 12.0 Ah battery pack features superior pack design, electronics, and fade-free performance to deliver more runtime per charge than any other Milwaukee® battery.

190 mm blade providing 66 mm cutting depth, allowing the saw to cut through 3 stacked OSB boards.

Durable metal hanging hook for shelf mounting to manage workspace and ensure safety.

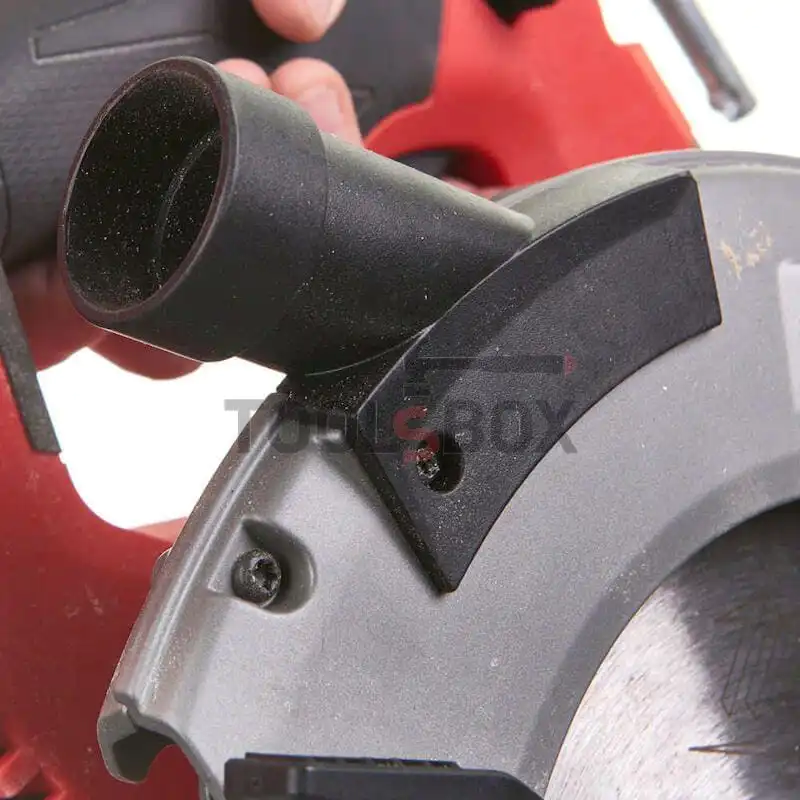

The included vacuum adapter fits directly onto all Milwaukee® dust collectors.

Technical Specifications:

Battery Type: Li-ion

Blade Diameter: 190 mm

Blade Teeth: 24

Blade thickness: 1.6 mm

Bore size: 30 mm

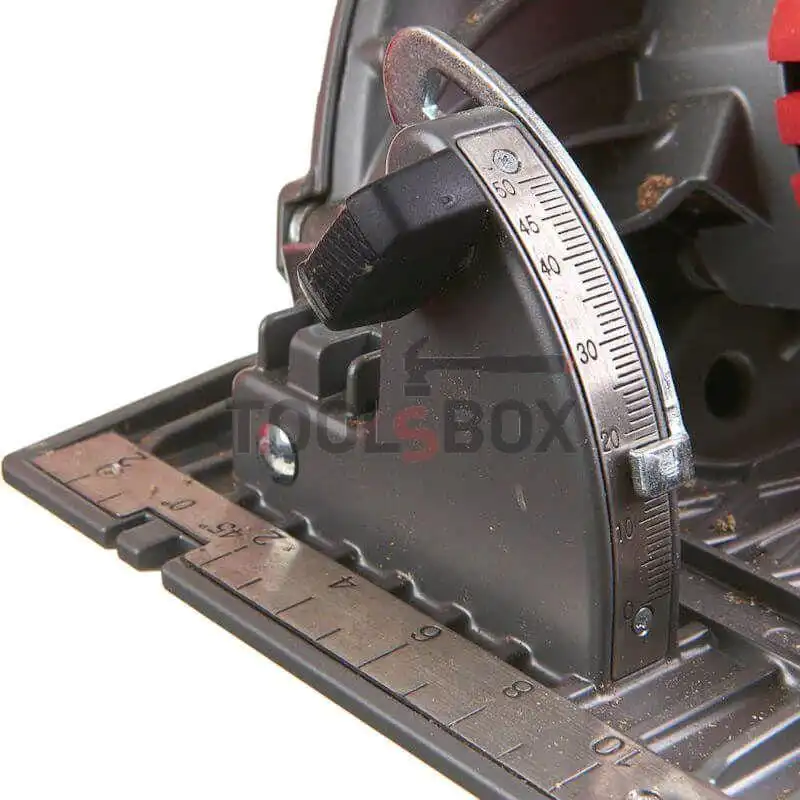

Max. bevel: 56°

No-load speed: 5800 rpm

Sound power level: 104.5 dB (A)

Sound power level uncertainty: 3 dB (A)

Sound pressure level: 93.5 dB (A)

Sound pressure level uncertainty: 3 dB (A)

Vibration level (sawing wood): 1.8 m/s2

Vibration level uncertainty (sawing wood): 1.5 m/s2

Voltage: 18V

Max. cutting depth (@ 0°): 66 mm

Max. cutting depth (@ 45°): 48 mm

Max. cutting depth (@ 56°): 43 mm
