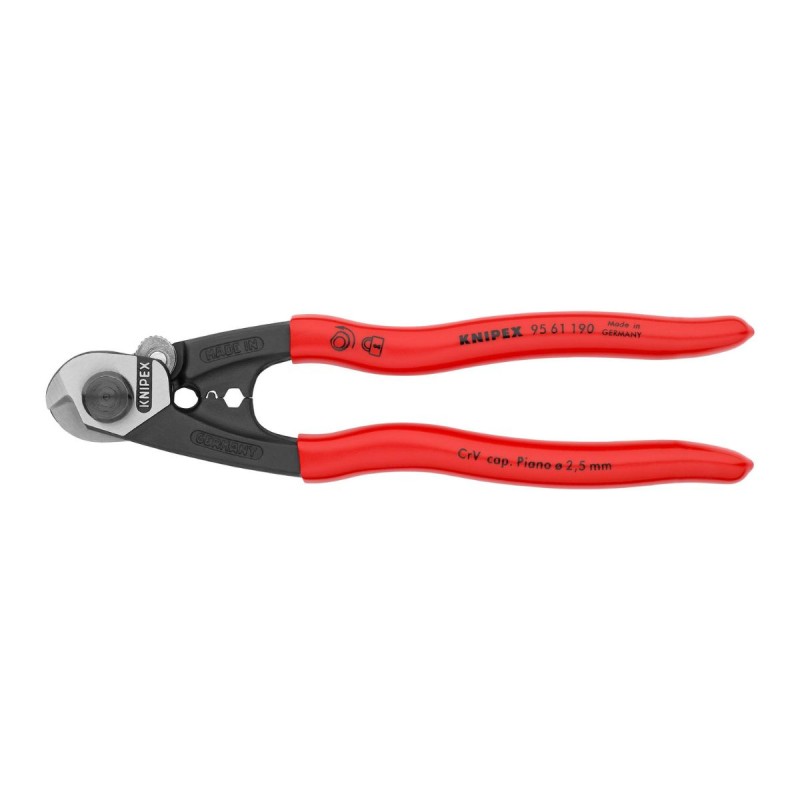

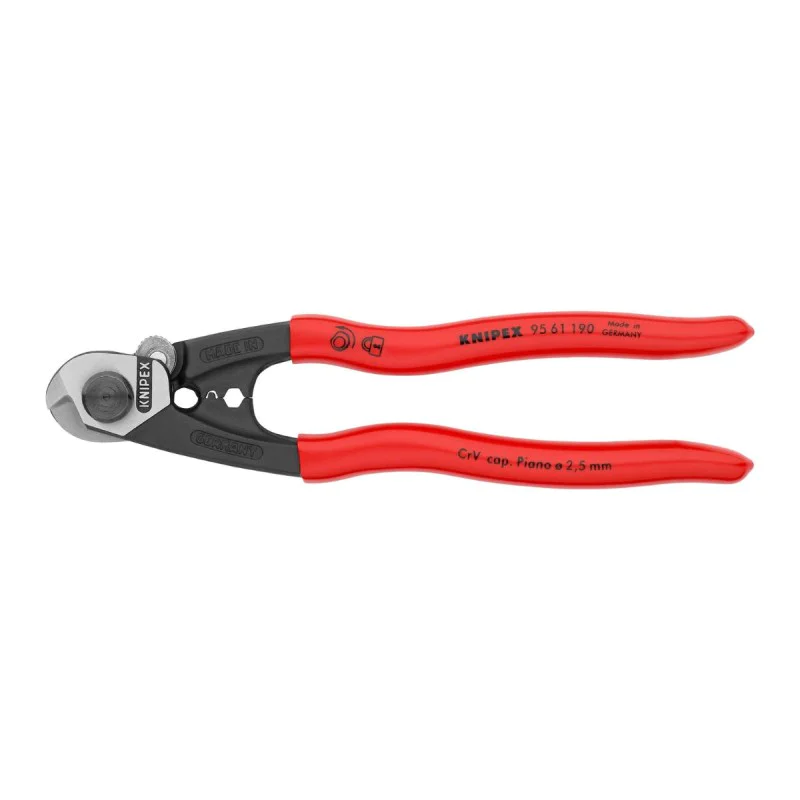

Knipex wire rope cutter pliers 95 61 190, 190 mm

Knipex 95 61 190 Wire Cutting Pliers

Description: Knipex 95 61 190

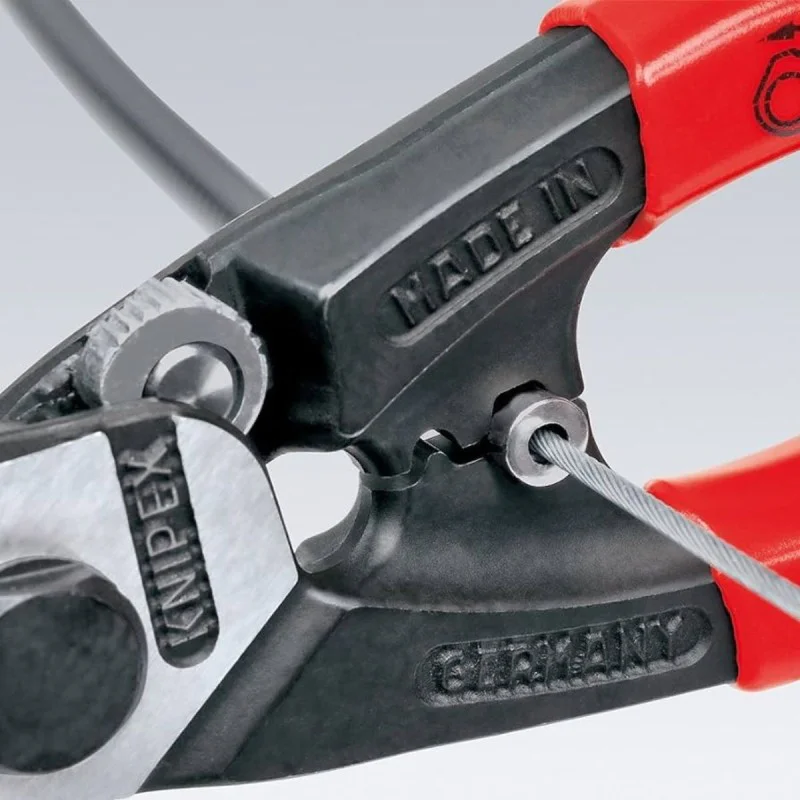

steel rope cutters are made of high-quality forged and oil-hardened chrome-vanadium steel, with the cutting edges additionally induction-hardened to a hardness of approximately 64 HRC, ensuring their durability and strength. The special blade geometry is designed to prevent the wires from unraveling when cutting the rope. They are comfortable to use, featuring a bolt for precise blade alignment and subsequent adjustment. Additionally, they feature 2 extra slots that allow for crimping pipe ends, steel coils, and wires. They are 190 mm long and have a cutting capacity of up to 5 mm (on hard material-up to 2.5 mm), ideal for professional applications where reliable and precise cutting of steel cables is required.

Technical specifications:

• Conductor cross-section: 10 mm2
• Material: CrV steel
• Insulation type: plastic coating
• VDE tested at 1000 V: no
• Jaw shape: side-sharpened
• Rockwell hardness: 64 HRC
• Cutting capacity for soft wire: 5 mm
• Cutting capacity for medium-hard wire: 4 mm
• Hard wire cutting capacity: 2.5 mm
• Cutting capacity for copper stranded cable: 7 mm
• Steel rope cutting capacity: 4 mm
• Jaw coating: polished
• Manufacturing method: induction hardened
• Additional features: with opening spring
• Length, mm: 190 mm
• Weight: 0.314 kg
