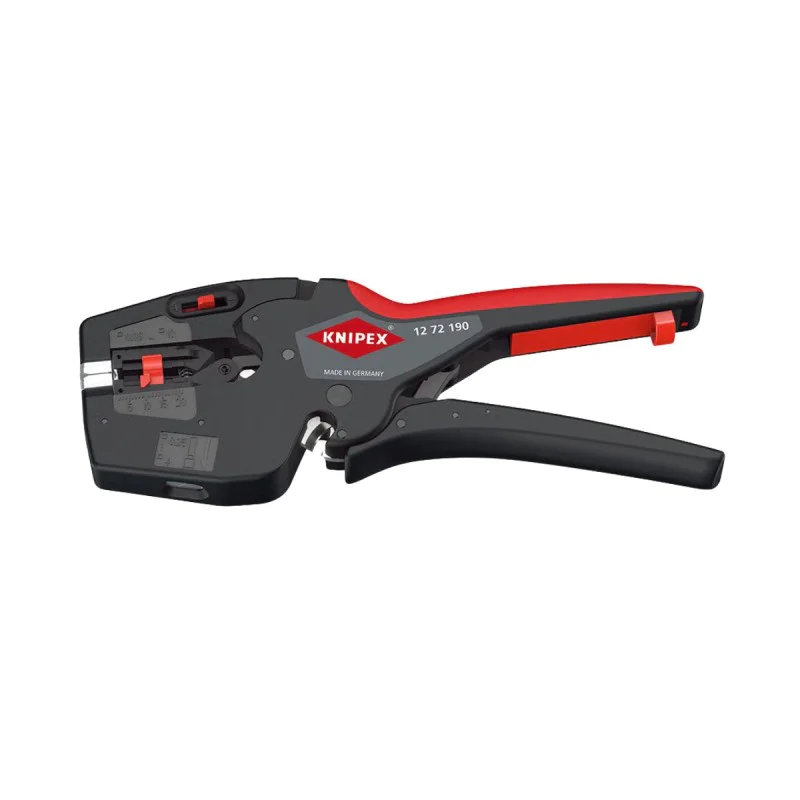

Knipex 12 72 190, 190 mm

Knipex 12 72 190 Insulation Pliers

Description:
The Knipex 12 72 190 multifunctional pliers are a professional tool that combines several important functions in one. The ratchet crimping mechanism ensures fast and uniform square crimping of single cable terminals in accordance with DIN 46228, automatically adjusting to sizes ranging from 0.25 to 4 mm2 or 2 x 2.5 mm2. The ratchet ensures a complete crimping cycle and consistently high connection quality. The stripping function automatically adapts to the cable diameter, and the adjustable stop ensures a consistent stripping length, which is particularly useful for repetitive operations. The finely adjustable cutting system allows for optimal adaptation to different materials and temperature conditions for flexible and solid conductors from 0.03 to 10 mm2. The multi-component handles offer a secure grip and comfortable, slip-free operation. The glass-fiber-reinforced plastic housing ensures high strength with a lightweight design. The tool is ideal for electricians working on residential installations and wiring electronic devices such as programmable logic controllers.

Technical specifications:

• Length: 190 mm
• Cutting capacity:
  • up to 10 mm2
  • AWG:8
• Stripping:
  • 0.03-10 mm2
  • AWG:32-8
• Square crimp:
  • Crimping of wire terminals: 0.25 - 4 mm2
  • Crimping of double wire terminals: 2 x 2.5 mm2, AWG: 32-8
