Name: 6-Point Socket - Expert by Facom, 13 mm, 1/4 inch Drive, E117353
Brand: Expert
SKU: E117353
Price: 1.89 EUR
Availability: InStock

6-Point Socket - Expert by Facom, 13 mm, 1/4 inch Drive, E117353

Second hand Label -25%

0 reviews • Write a review

Technical specifications:

Manufacturer: Expert by Facom
Part number: E117353
Size: 13 mm
Drive: 1/4 inch
Points: 6
Profile: OGV
Material: Chrome vanadium steel
Finish: High chrome
Length: 25 mm
Weight: 26 g

Categories: Hand tools , Inserts

Add to Wish List Compare this Product

6-Point Socket - Expert by Facom, 13 mm, 1/4 inch Drive, E117353

-25%

1.89€

2.52€

Ex Tax: 1.58€

Stock: In Stock
Brand: Expert
SKU:
E117353

Магазин Младост

1 бр.

Магазин Слатина

0 бр.

Склад

0 бр.

Qty

Add to Cart

Question?

Buy with

48 installments of 0.06€

15 days right of return

Preview before payment

Official distributor

Secure online payment

Expert by Facom 6-Point Socket 13 mm, 1/4 inch Drive, E117353

Expert by Facom E117353 is a 13 mm 6-point socket on a 1/4 inch drive in the standard (short) length. It is made of chrome vanadium steel with a high chrome finish and uses the OGV profile. It is 25 mm long and weighs 26 g. The manufacturer specifies it for manual use - with a ratchet, a spinner handle or an extension bar with a 1/4 inch square.

The OGV profile

An ordinary socket transmits the force through the corners of the nut. That is where the pressure peaks and where rounding starts. The OGV profile applies the tightening torque to the flanks of the hexagon instead, where the bearing area is far larger. The nut or bolt head is gripped securely and its edges are preserved even after repeated loosening and tightening.

1/4 inch drive and 13 mm size

The 1/4 inch square is the smallest of the standard drives. Ratchets and extensions for it are compact, which makes it convenient for lower tightening torque and for tight spots where a larger ratchet has no room to swing. In the Expert by Facom 1/4 inch 6-point socket range the sizes run from 4 to 14 mm, so 13 mm is one of the largest sizes on this drive.

Material and finish

Chrome vanadium steel is the usual material for quality hand sockets. The high chrome finish protects against corrosion and lets the socket be wiped clean of oil and dirt in one pass.

Standards

The socket complies with ISO 2725-1 and DIN 3124, with ISO 1174-1 for the drive square, with ISO 1711-1 and with ISO 691 for the opening tolerances. The manufacturer's specification also lists ASME B107.110. In practice this means the dimensions follow the norm and the socket fits 1/4 inch ratchets and extensions from other brands too.

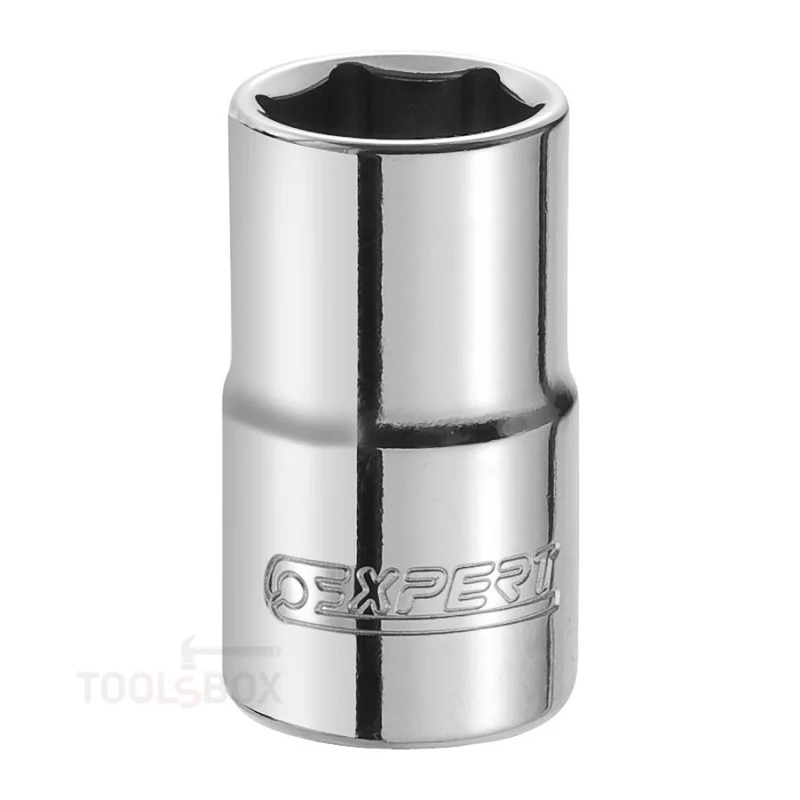

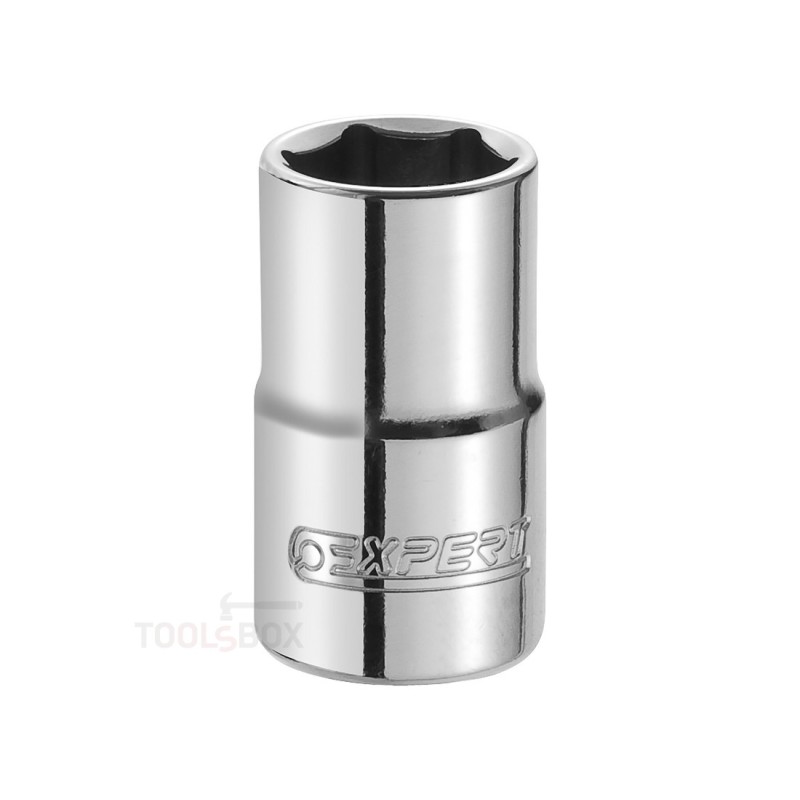

About the photo

The photo is the official Expert by Facom image, which the manufacturer uses for several sizes of the 1/4 inch range. The size in the title and in the table - 13 mm - is what applies.

Technical specifications

Manufacturer	Expert by Facom
Part number	E117353
EAN	3258951173534
Type	6-point socket, standard (short)
Size	13 mm
Drive	1/4 inch
Profile	OGV
Material	Chrome vanadium steel
Finish	High chrome
Length	25 mm
Weight	26 g
Standards	ISO 2725-1, DIN 3124, ISO 1174-1, ISO 1711-1, ISO 691, ASME B107.110
Use	Manual use

Questions and Answers

What size is the socket?

The socket fits nuts and bolts with a 13 mm hexagon and mounts on a 1/4 inch square drive. The manufacturer's part number is E117353.

Can it be used with an impact wrench?

No. The manufacturer specifies it for manual use - with a ratchet, a spinner handle or an extension bar. Impact tools need dedicated impact sockets.

What is the OGV profile?

It is a hexagon geometry that applies the tightening torque to the flanks of the nut rather than to its corners. The grip is more secure and the nut edges are protected from rounding.

Will it fit a ratchet from another brand?

Yes, as long as the ratchet or extension has a 1/4 inch square. The socket follows ISO 2725-1, ISO 1174-1 and DIN 3124, so the drive dimensions are standard.

Is it a deep or a short socket?

This is the standard (short) socket with a length of 25 mm. Nuts on long studs or in deep recesses need a deep socket, which is a separate item.

What material is it made of?

Chrome vanadium steel with a high chrome finish that protects against corrosion and makes cleaning easy. The socket weighs 26 g.

What other sizes are in the range?

Expert by Facom 1/4 inch 6-point sockets come in sizes from 4 to 14 mm. Each size has its own part number - for example 12 mm is E117352 and 14 mm is E117354.
