Combination pliers Knipex 13 86 200, 200 mm, VDE, 6in1

Knipex 13 86 200 Multi-Purpose Pliers

Description:

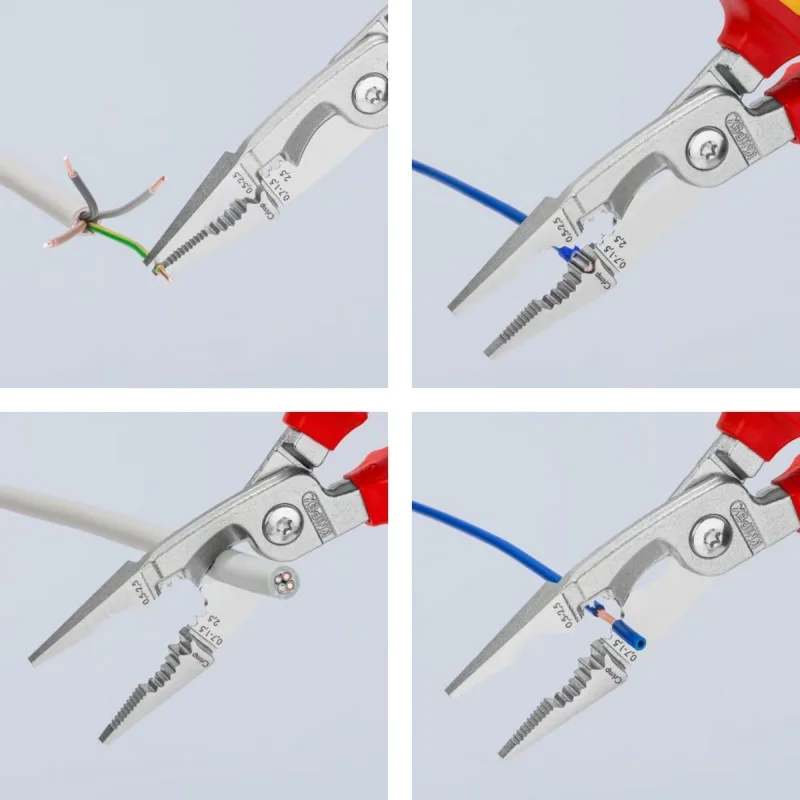

The Knipex 13 86 200 combination pliers are a multifunctional tool specifically designed for electrical installations, combining 6 functions in one. The pliers allow for gripping flat and round materials, bending, trimming wire ends, cutting cables, stripping insulation, and crimping sleeves. They are made of high-quality special tool steel, oil-hardened for maximum durability. The smooth sliding surfaces at the tip grip delicately without damaging individual wires in the conductor. The contoured gripping surfaces and the special opening ensure a secure grip on materials of various shapes. The distinctive outer edge of the jaw is ideal for working with concealed boxes and trimming excess wire. The tool strips cables with cross-sections of 0.7-1.5 mm2 and 2.5 mm2, and the crimping die works with sleeves from 0.5 to 2.5 mm2. The cable cutter cuts copper and aluminum cables up to 5x2.5 mm2 or 15 mm in diameter. The compact design allows for work in tight spaces, and the precision screw hinge ensures stable and smooth operation of the tool.

Technical specifications:

• Length: 200 mm
• Crimping capacity: 0.5 / 0.7 / 1.5 / 2.5 mm2
• Cutting capacity: 15 mm / 50 mm2
• Stripping capacity: 0.7-1.5 / 2.5 mm2
• Material: tool steel (CS)
• Handles: two-component
• Type: combination
• Coating: chrome-plated
• Rating: insulated 1000V
• DIN Standard: EN 60900
• Dimensions (L x W x H): 200 x 20 x 85 mm
• Weight: 0.285 kg
