Stanley SURFORM Replacement Blade for Metal, 250 mm, 5-21-508

Stanley SURFORM Replacement Blade for Metal, 250 mm, 5-21-508

Stanley 5-21-508 is a SURFORM replacement blade, 250 mm long, made for working metal. It fits the planes and shaping tools of the Surform system.

What Surform is

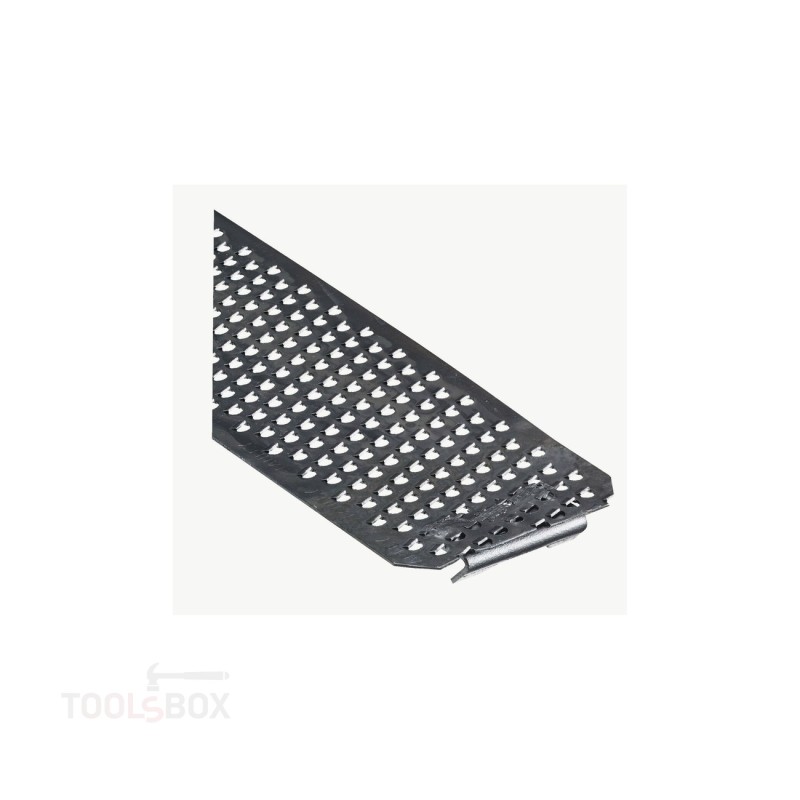

Surform is a tool between a plane and a file. The blade is a thin sheet with hundreds of small angled cutting teeth, each taking a miniature shaving. Between the teeth are openings through which the shavings pass to the other side of the blade.

Those openings are the whole point of the design. An ordinary file collects swarf between its teeth, clogs, and after a few strokes starts sliding instead of cutting - especially in soft, gummy material. With Surform the shaving simply passes through the blade and drops away, so the tool never loads up.

The metal blade

This particular blade is for metal - a finer tooth than the wood and plastic blades. It works in soft metal: aluminium, copper, brass, lead, and in hard plastics and composites. It is not for hardened steel.

Typical jobs: deburring a cut section, fitting aluminium window profile, levelling a weld, shaping a curve in soft metal - work where a file is slow and an angle grinder takes off too much and leaves marks.

Changing the blade

A Surform blade is a consumable - it is not sharpened. When the teeth round off, the tool starts sliding and burnishing the surface instead of cutting it. That is the moment to change. The handle and frame stay; only the sheet is replaced.

The 250 mm length matches the standard flat-frame Surform planes. Before buying, check which blade length your tool takes - the system also includes shorter models.

How to use it

Surform cuts on the forward push, with the tool held at a slight angle to the direction of travel. Do not press on the return stroke - that only dulls the teeth. A greater angle removes more material; close to zero, Surform smooths.
