Optical spirit level Bosch GOL 32 G Set 0601068503

Bosch GOL 32 G Set Optical Level

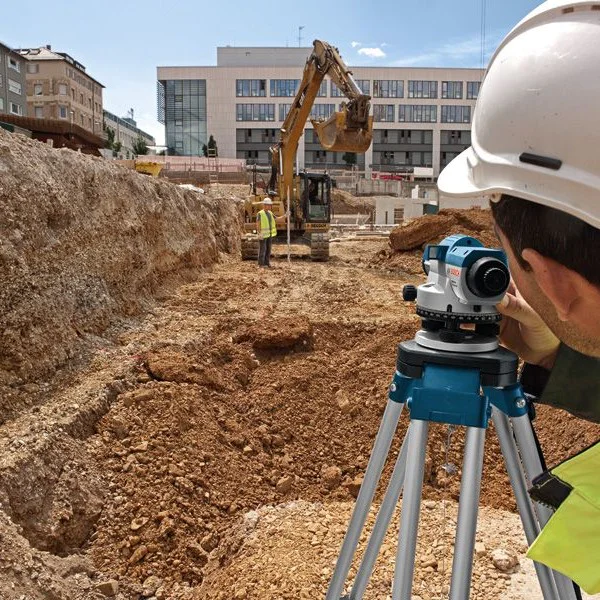

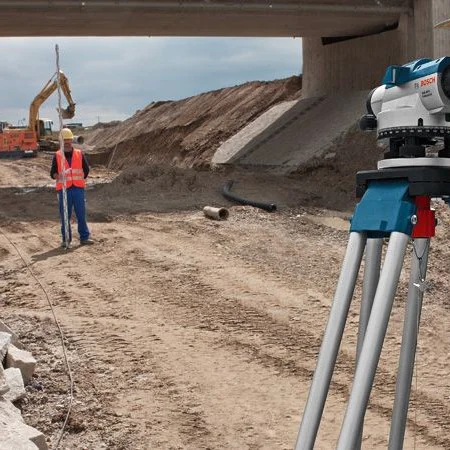

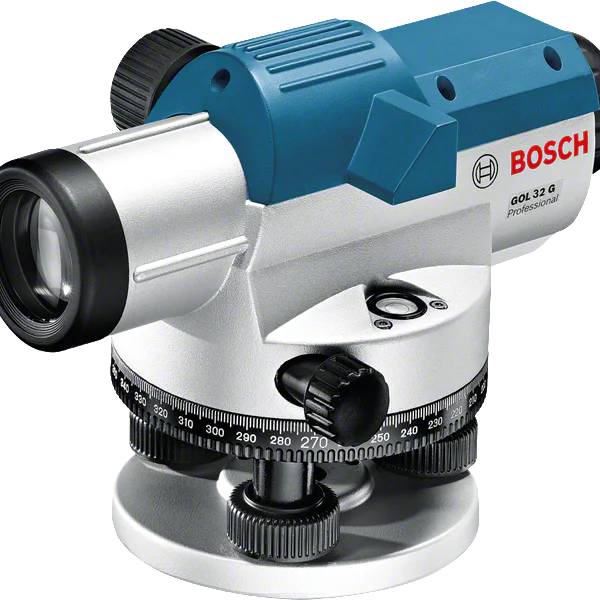

The Bosch GOL 32 G Set optical level is a professional measuring instrument for outdoor use, designed for precise leveling, height control, and construction measurements. The set includes the level itself, a GR 500 Professional measuring rod, a BT 160 Professional construction tripod, a carrying case, a lens cover, an adjustment pin, and a plumb bob. The rugged housing is protected against dust and water splashes, making it suitable for use in demanding construction environments. The model operates at 32x magnification and provides a leveling accuracy of ±1.0 mm at 30 m. The working range extends up to 120 m, and the standard tripod thread is 5/8", allowing for stable mounting and easy compatibility with construction tripods. The instrument is designed for operation at temperatures ranging from -10 °C to 50 °C and can be stored in a range from -20 °C to 70 °C.

Technical specifications:

• Type: optical level
• Magnification: 32x
• Leveling accuracy: ±1.0 mm at 30 m
• Working range: 120 m
• Unit of measurement: 400 gon
• Tripod thread: 5/8"
• Protection: IP54
• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 70 °C
• Weight: approximately 1.5 kg

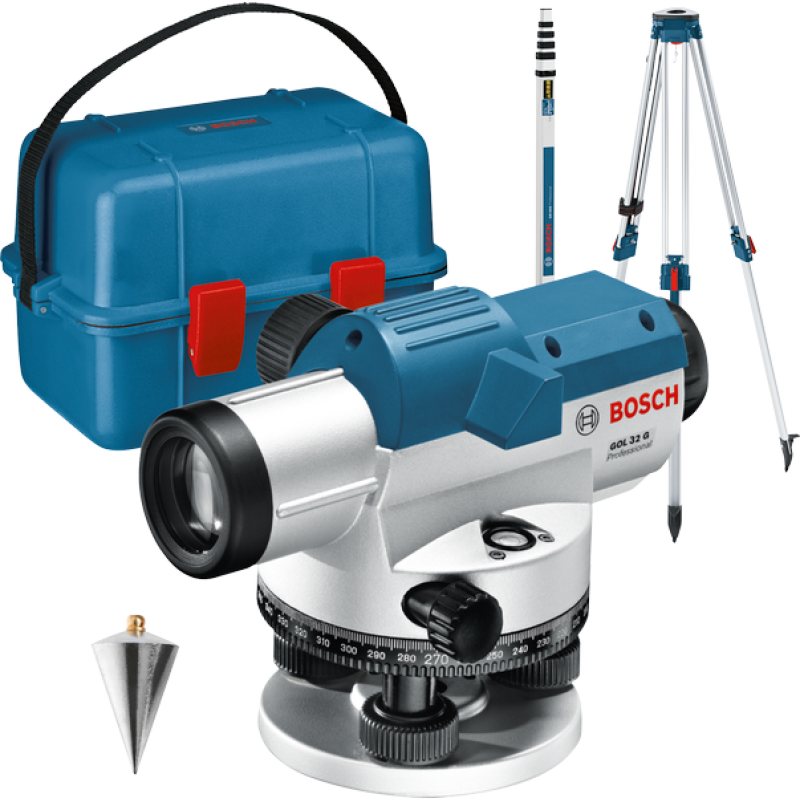

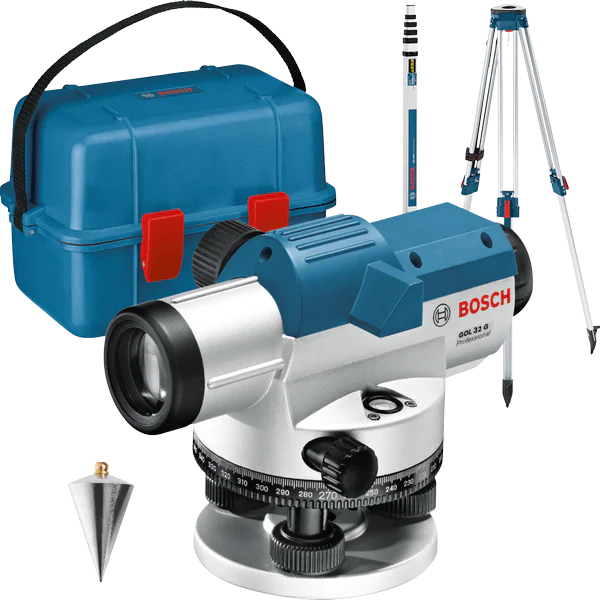

Package contents:

• GR 500 Professional
• BT 160 Professional
• Carrying case
• adjustment pin
• lens protector
• plumb bob
