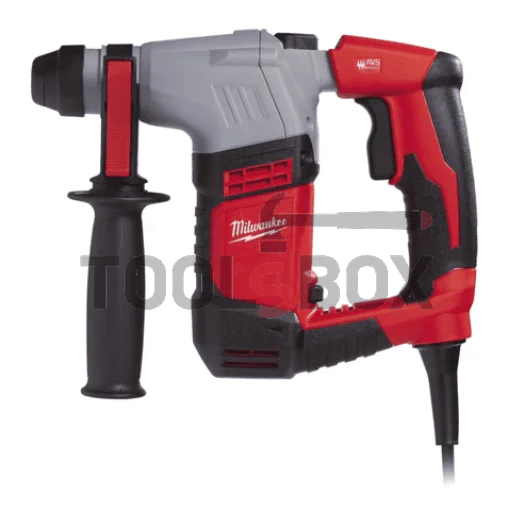

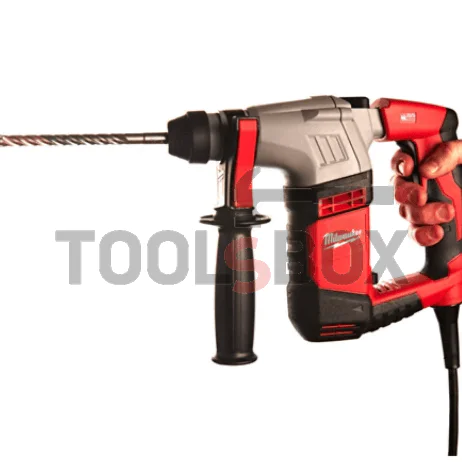

Milwaukee PLH 20 electric SDS-plus perforator / 4933408070

Manufacturer

: Milwaukee

Model:

PLH 20

Warranty:

3 years after registration on the website

Description:

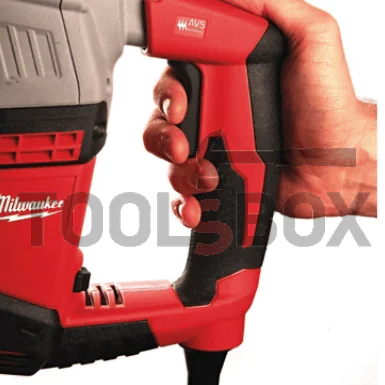

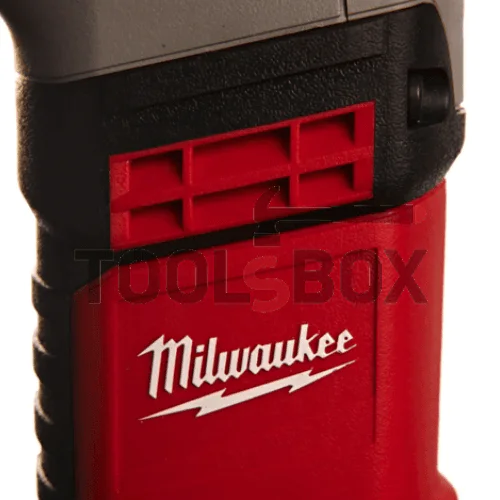

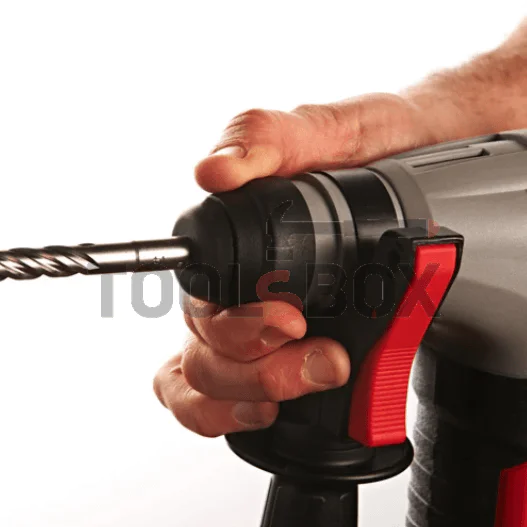

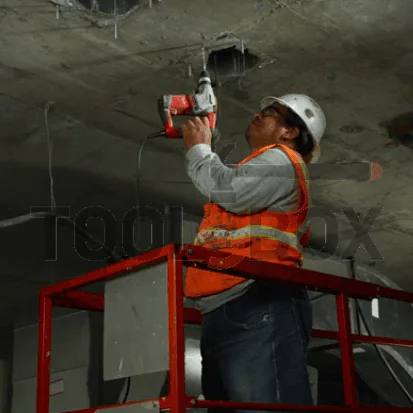

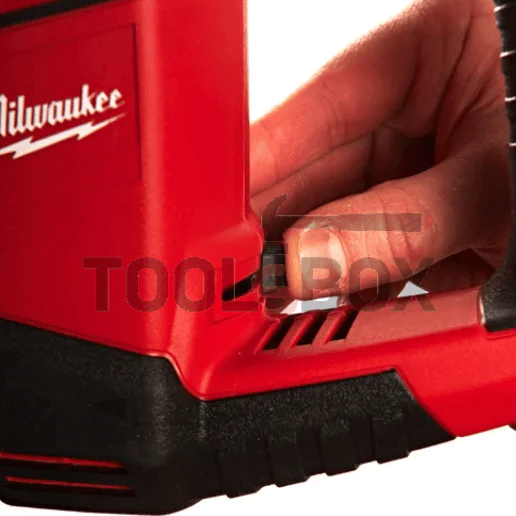

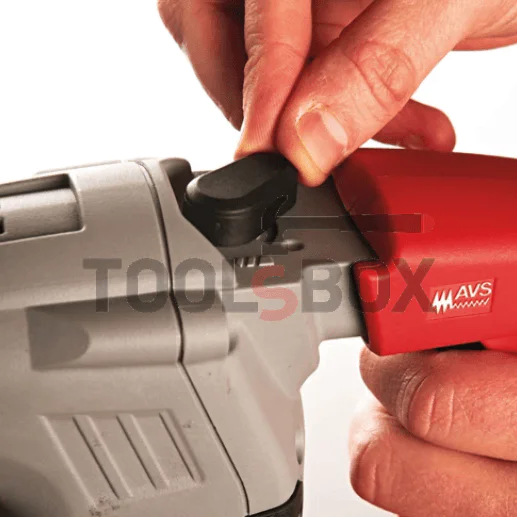

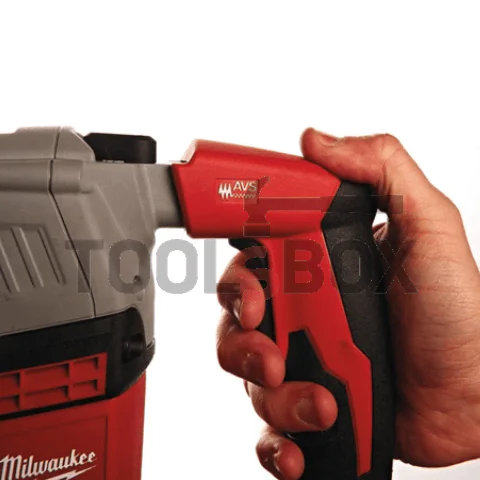

Best power-to-weight ratio in its class-2.0 J and 1.9 kg. A 620-watt motor combined with optimized drilling speed delivers unmatched drilling performance. The motor's cooling airflow is designed to direct drill cuttings away from the user when drilling from above. AVS (Anti-Vibration System) for more comfortable use and less user fatigue. Optimized hammer drilling with 5-12 mm drill bits. The safety clutch protects the user and the machine when the drill bit jams. Forward and reverse mechanism. Soft grip for comfort. 4 m cable.

Technical specifications:

Blow energy (EPTA) (J): 2.0

Full-load hammer rate (bpm): 0-4400

Full-load speed (soft hammer) (rpm): 0-2700

Max. concrete drilling (mm): 20

Max. drilling capacity in steel (mm): 13

Max. drilling capacity in wood (mm): 30

Max. drilling capacity in wood/steel/concrete (mm): 30/13/20

No-load speed (rpm): 0 - 3700

Input power (W): 620

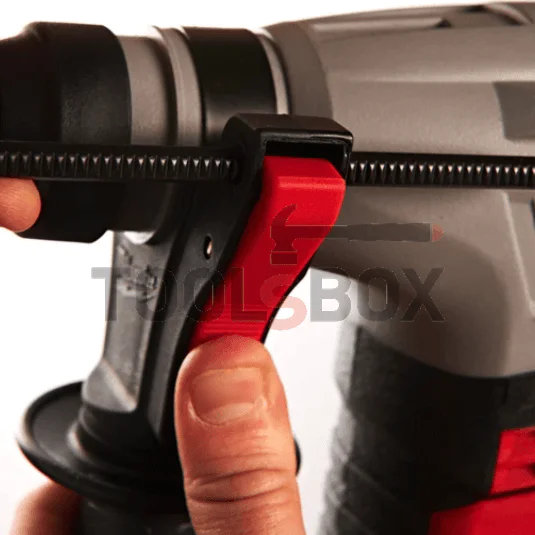

Standard equipment: Auxiliary handle, depth

Tool chuck: SDS-Plus

Vibration (m/s2): 10.2

Weight (kg): 1.9

Sound power level (dB(A)): 101

Uncertainty of sound power level (dB(A)): 3

Sound pressure level (dB(A)): 90

Sound pressure level uncertainty (dB(A)): 3

Vibration drilling in concrete [m/s2]: 12

Vibration drilling in concrete uncertainty [m/s2]: 1.5
