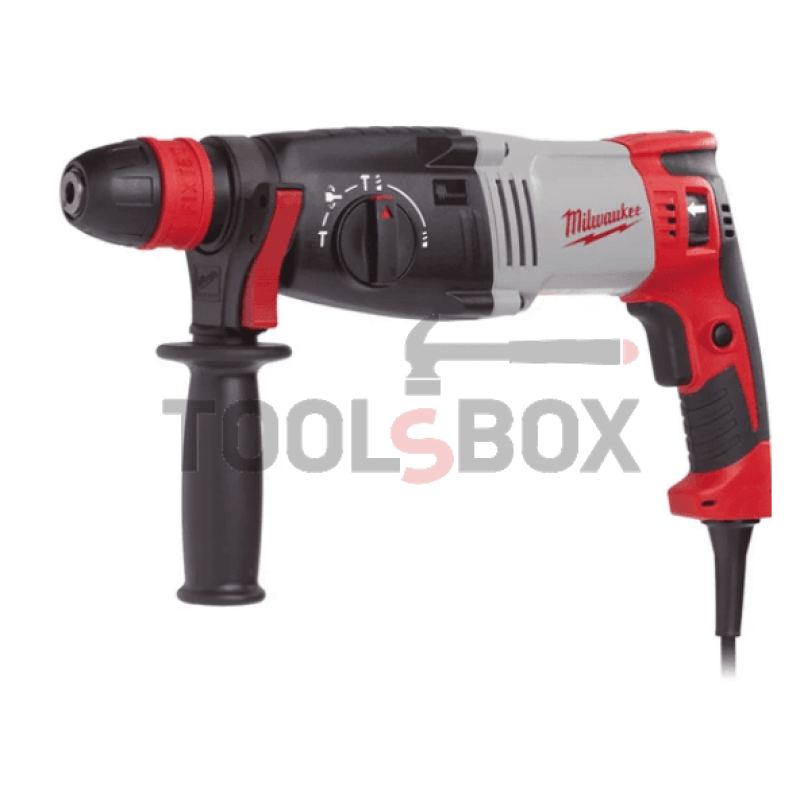

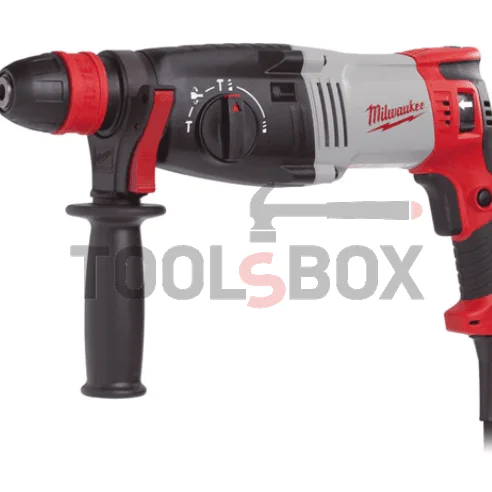

Milwaukee PH30X Punch / 4933396420

Manufacturer

: Milwaukee

Model:

PH30X

Warranty:

3 years after registration on the website

Description:

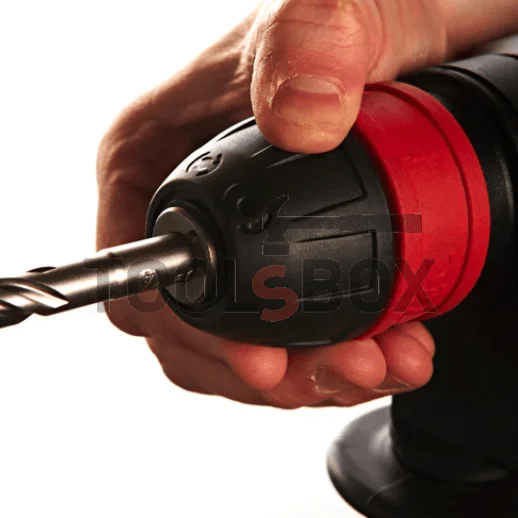

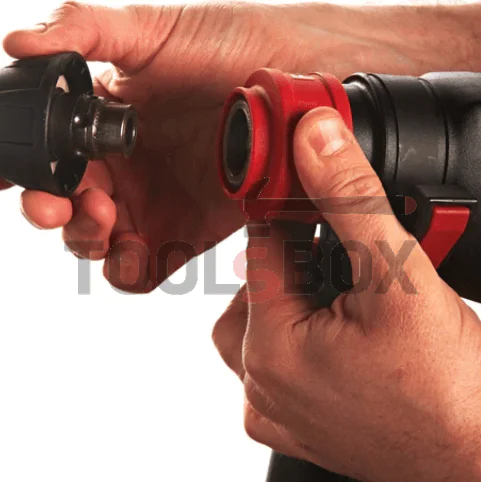

This heavy-duty hammer drill delivers 3.6 joules of impact energy. A 1,030-watt motor combined with an optimized drilling speed results in unmatched drilling performance. Soft start for precise drilling/chiseling. Low vibration thanks to the ergonomic soft-grip on the main and side handles. Soft-hammer mode for drilling in delicate materials. Quick tool change via the FIXTECTM system with a keyless chuck. Best-in-class durability is achieved through the use of integrated metal block technology in the gear mechanism. Brush rotation ring (for the same power in both forward and reverse directions). The safety clutch protects the machine and the user if the drill bit jams. 4 m cable.

Technical specifications:

Blow energy (EPTA) (J): 3.6

Full-load hammer action (bpm): 0 - 3800

Full-load speed (rpm): 0 - 850

Max. concrete drilling (mm): 30

Max. steel drilling (mm): 13

Max. wood drilling (mm): 40

Max. drilling capacity in wood/steel/concrete (mm): 40/13/30

Input power (W): 1030

Standard equipment: FIXTECTM adapter with keyless chuck, side handle with metal depth gauge

Tool shank: SDS-Plus

Vibration chisel (m/s2): 14

Vibration chisel uncertainty (m/s2): 1.5

Vibration drilling (m/s2): 22

Weight (kg): 2.9

Sound power level (dB(A)): 103

Sound power level uncertainty (dB(A)): 3

Sound pressure level (dB(A)): 93

Sound pressure level uncertainty (dB(A)): 3

Vibration drilling in concrete [m/s2]: 22

Vibration drilling in concrete uncertainty [m/s2]: 1.5
