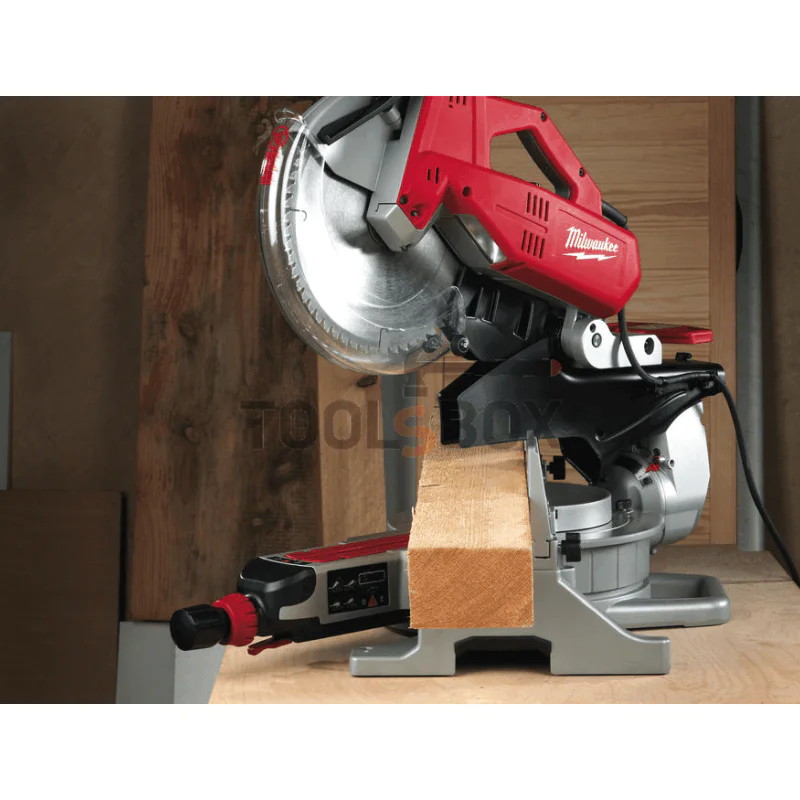

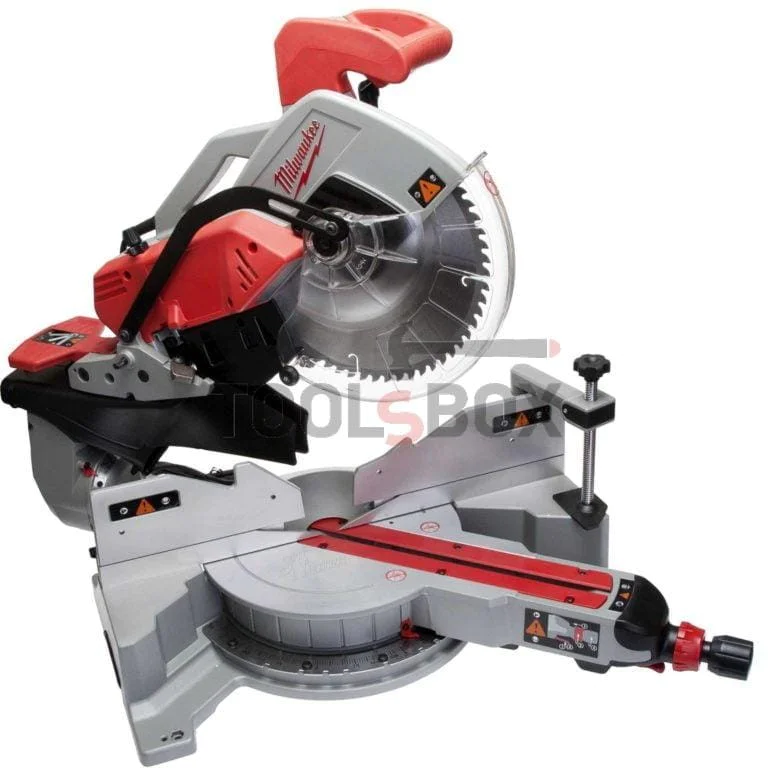

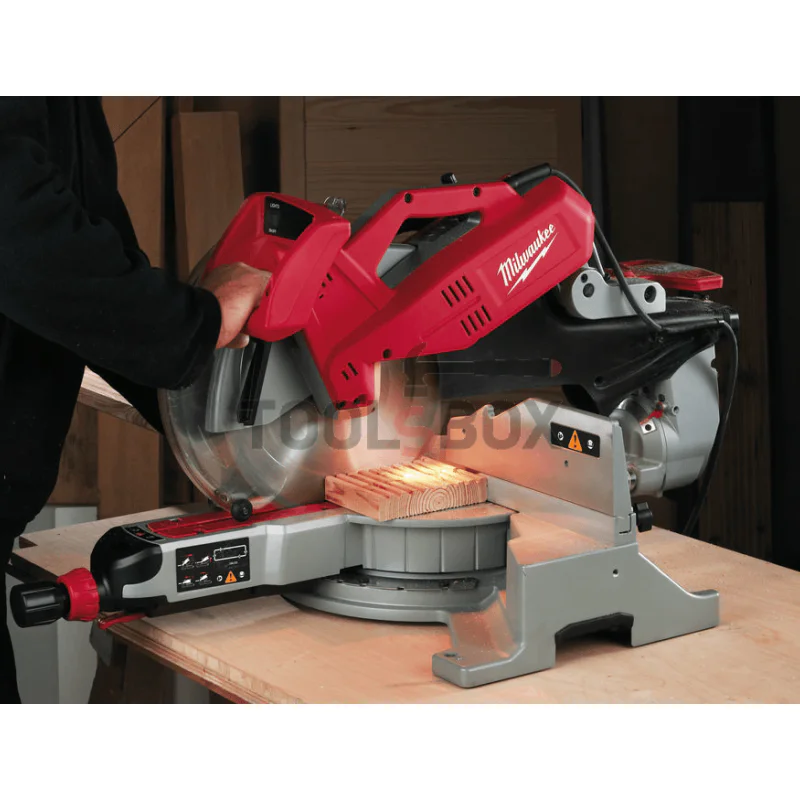

Milwaukee MS 304 DB / 12'', 1800W (305mm) - 4933433340

Manufacturer:

Milwaukee

Model:

MS304DB

3-year warranty after registration

Description:

Dual integrated lights on the blade illuminate the cutting line. The integrated dust channel captures 75% of all dust by collecting dust near the cut on both sides of the blade and directing it to the back of the saw. An 1800 W direct-drive motor ensures fast and clean cutting even in hard wood materials. Unique integrated motor design-for excellent visibility on both sides of the workpiece and better balanced handling. Bevel capacity of 55° to the left and 60° to the right-for maximum flexibility. Bevel stops L&R at: 0°, 15°, 22.5°, 31.6°, 45°, 60°.Double bevel design-for tilting the saw head left and right 0°-48° with beveled L&R detectors at: 0°, 22.5°, 33.85°, 45°, 48°. Quick and precise bevel adjustment. Supplied with a workpiece clamp, cutting blade (60 teeth), vacuum adapter ø35/58 mm, wrench, and 3 m cable.

Technical specifications:

Tilt capacity to the left (°): 48

Right-hand tilt capacity (°): 48

Blade diameter (mm): 305

Cable length (m): 3

Vibration during cutting (m/s2): <>

Vibration uncertainty during cutting (m/s2): 1.5

Weight (kg): 29.5

Mitre capacity to the left (°): 55

Mitre capacity to the right (°): 60

No-load speed (rpm): 3900

Power (W): 1800

Max. cutting capacity at 45° miter / 45° bevel (mm): 241 x 57

Max. cutting capacity at 45° miter / 90° bevel (mm): 241 x 102

Max. cutting capacity 90° miter / 45° bevel (mm): 342 x 57

Max. cutting capacity 90° miter / 90° bevel (mm): 342 x 102

Standard equipment - Workpiece clamp, saw blade (60 teeth), vacuum adapter ø35 / 58 mm, wrench, 3 m cable.

Delivered in a box.
