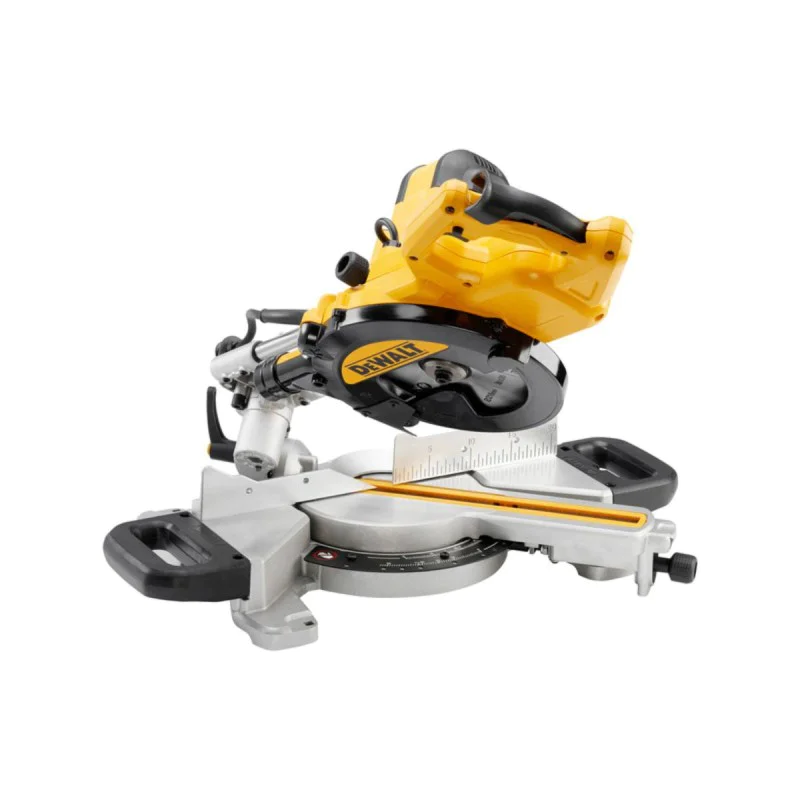

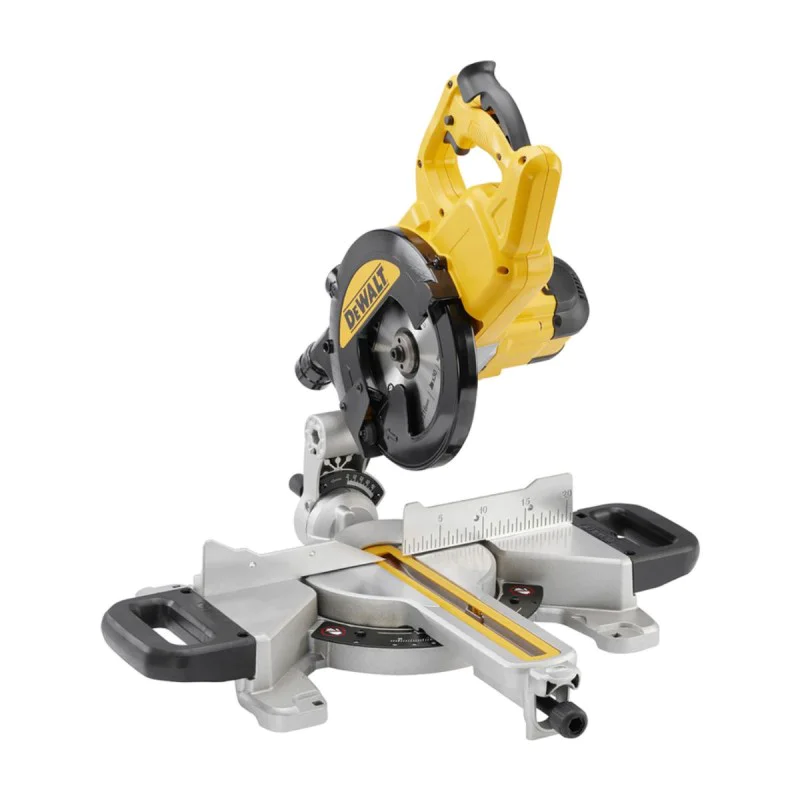

Immersion table saw DeWALT DWS774, 1400W, 216mm

DeWALT DWS774 Plunge Table Saw

The Dewalt DWS774 table saw is a new, improved model of a sliding table saw designed for use on wood materials. It features a powerful 1400 W motor, making it ideal for the most demanding tasks. The XPS shadow line cutting guide ensures quick and accurate blade alignment while illuminating the workpiece for maximum precision. Improved dust extraction efficiency helps maintain a clean, safe working environment, and the side handles ensure easy transport. It features a head lock function that allows for locking the head in place, limiting the stroke for various applications and facilitating easy transport. Integrated positive bevel stop at 15°, 22.5°, 30°, 45°, with a quick-release mechanism up to 50°. Fixed left and right fences with a measuring scale for improved material support and control. Compact internal rail design for a large cutting capacity.

Technical specifications:

• Power: 1400 W;
• Blade diameter: 216 mm;
• Bore diameter: 30 mm;
• Bevel capacity: 48°;
• Mitre capacity [right/left]: 48/48°;
• Cutting capacity at 90°/45° (W x H): 173 x 62 mm;
• Cutting capacity at 90°/90° (W x H): 250 x 62 mm;
• Cutting capacity at 90°/90° (W x H): 250 x 60 mm;
• Cutting capacity at 45°/90° (W x H): 177 x 62 mm;
• Cutting capacity at 45°/90° (W x H): 177 x 60 mm;
• Cutting capacity at 90°/45° (W x H): 265 x 48 mm;
• Max. cutting capacity at 45°/45°: 190 x 48 mm;
• Max. cutting depth [saws]: 70 mm;
• Max. no-load speed: 0 - 6300 rpm;
• Max. cutting speed: 0-4500 rpm;
• Noise level: 104 dB;
• Dimensions (W x D x H): 490 x 550 x 590 mm;
• Weight: 12 kg.
