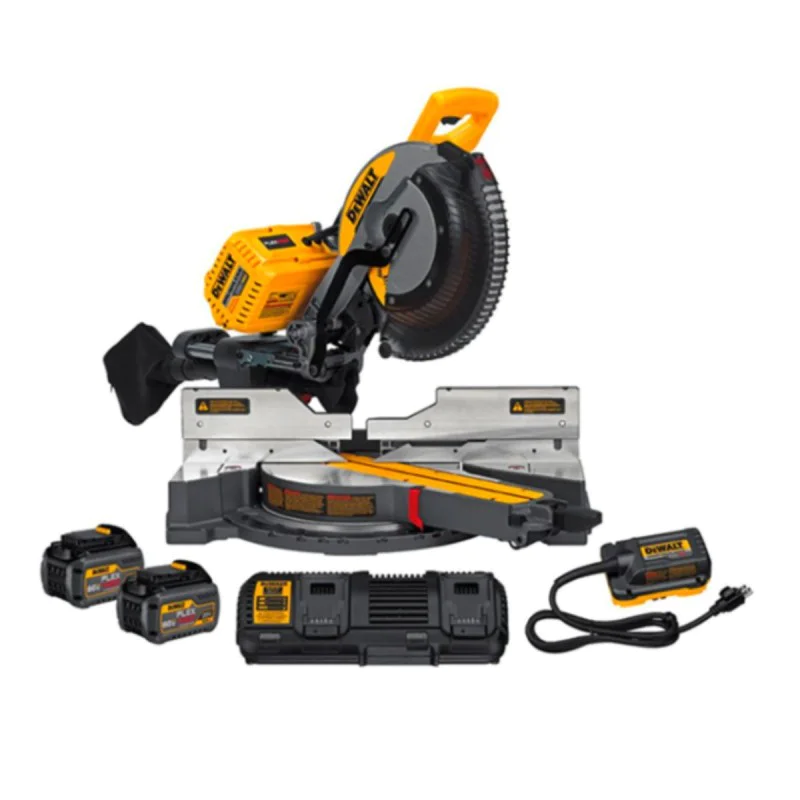

DeWALT DHS780T2A, 54V, 305mm, cordless table saw/headsaw

DeWALT DHS780T2A Cordless Table/Pendulum Circular Saw

The DeWALT DHS780T2A cordless plunge circular saw with miter gauge has a voltage of 54/18 V and a blade diameter of 305 mm. It is equipped with a brushless BLDC motor that protects the machine from overheating. The cutting depth stop is used for making grooves, and the linear horizontal guides with bronze bushings ensure high precision. Thanks to the XPS system, precise alignment of the blade along the cutting line is achieved, as well as illumination of the work area. The package includes 2 batteries, a charger, a carbide blade, and a 230 V adapter with a 3.2 m cable.

Technical specifications:

• Voltage: 54 V;
• Battery type: Li-ion;
• Motor type: Brushless;
• Blade diameter: 305 mm;
• Bore size: 30 mm;
• Cutting angle: 49°;
• Rotation angle (left/right): 50/60°;
• Maximum cutting depth: 170 mm;
• No-load speed: 0-3,800 rpm;
• Cutting depth at 90°/45°: 211 x 112 mm;
• Cutting depth at 90°/90°: 303 x 110 mm;
• Cutting depth at 90°/90°: 345 x 76 mm;
• Cutting depth at 45°/90°: 268 x 63 mm;
• Lighting: LED;
• Noise: 100 dB;
• Dimensions (L x W x H): 770 x 396 x 470 mm;
• Weight: 25.5 kg

The set includes:

• Machine: DeWALT DHS780T2A;
• DCB546 rechargeable battery (6.0Ah/18V): 2 pcs.;
• Charger: 1 pc.;
• Circular saw blade: 1 pc.;
• 230V adapter with a 3.2 m cable: 1 pc.;
• Carrying case: 1 pc.
