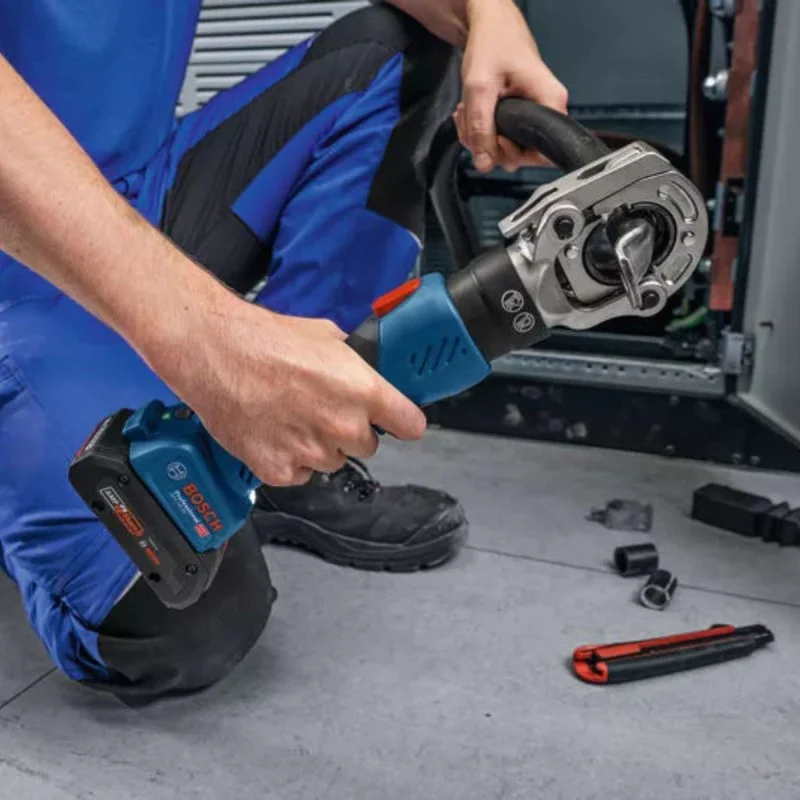

Cordless crimping machine Bosch GPH 18V-60, 06019P0100, 18 V, 300 mm2

Bosch 06019P0100 Cordless Crimping Tool

Description:

The Bosch GPH 18V-60 cordless crimping tool is designed for crimping cable lugs onto copper and aluminum cables. With its constant output force of 60 kN and built-in electronic pressure sensor, it ensures reliable and high-quality results in every application. The LED indicator provides a convenient display of the achieved pressure, the tool's status, and maintenance requirements. Thanks to the manual pressure release function, the crimping process can be interrupted at any time for additional control and safety. The tool is suitable for crimping cables with a cross-section of up to 300 mm2, making it a versatile solution for electricians and industry professionals. The built-in USB connection and dedicated software enable crimp history tracking, error diagnostics, and maintenance planning, contributing to a longer service life and optimal efficiency.

Supplied without battery and charger! Technical specifications:

• Voltage: 18 V
• Battery type: Li-Ion
• Crimping force, max: 60 kN
• Crimping range, max: 300 mm2
• Readout function: Yes
• Min. crimping range: 6 mm2
• Head rotation: 340°
• Stroke length, max: 17 mm
• Automatic retraction: Yes
• Bonding material: copper and aluminum: Yes
• Service life: 20,000 cycles
• Manual pressure release: Yes
• Manual crimping stop: Yes
• USB connector: Yes
• Worklight: Yes
• Automatic pressure limiting and monitoring: Yes
• USB mode: USB 2.0
• Crimping time: 2 s to 5 s (depending on cable cross-section)
• Dimensions (L x W x H): 357 x 97.4 x 77.2 mm

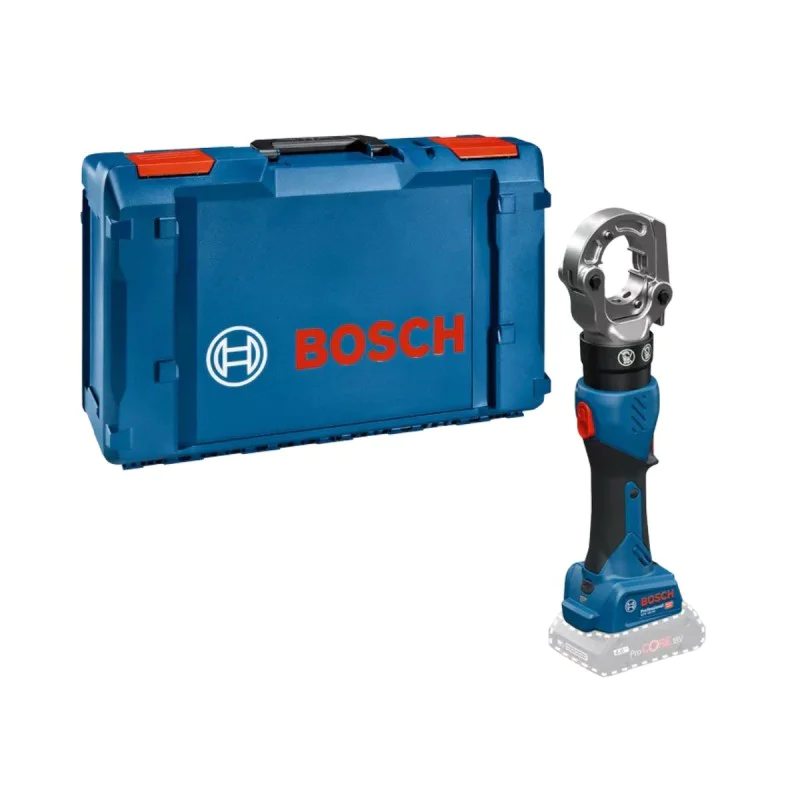

The set includes:

• 1 x XL-BOXX case
