Bosch magnetic drill GBM 50-2, 1200W, - 06011B4020 / GBM 50-2

Bosch GBM 50-2 Magnetic Drill

Description:

The Bosch GBM 50-2
magnetic drill is convenient and highly durable, featuring 2
operating modes. With 1200W
of power and laser technology for quick target alignment, it boasts a powerful motor for durable and efficient precision drilling. It features a power cut-off system to protect against electric shock. Thanks to its strong magnetic force, the machine is ideal for core drilling in metal. Equipped with an intelligent HMI
system-a service display alerts you to preventive maintenance (carbon brush replacement) and an indicator warns of overload to ensure a long service life for the tool.

Technical specifications:

• Voltage: 230 V / 50 Hz
• Power: 1200 W
• Number of speeds: 2
• Speed at 1st gear: 50 - 250 rpm
• Speed at 2nd speed: 100 - 510 rpm
• Cutter shank type: MT2
• Maximum drilling depth: 50 mm
• Maximum drilling diameter with twist drill: 20 mm
• Magnetic holding force: 12,250 N (12.25 kN)
• Magnetic surface: 190 x 90 mm
• Spindle stroke: 160 mm
• Cooling system: external reservoir
• Application: for drilling with core bits and twist drills
• Noise level: 90 dB
• Dimensions (L x W x H): 274 x 196 x 444 mm
• Weight: 14.7 kg

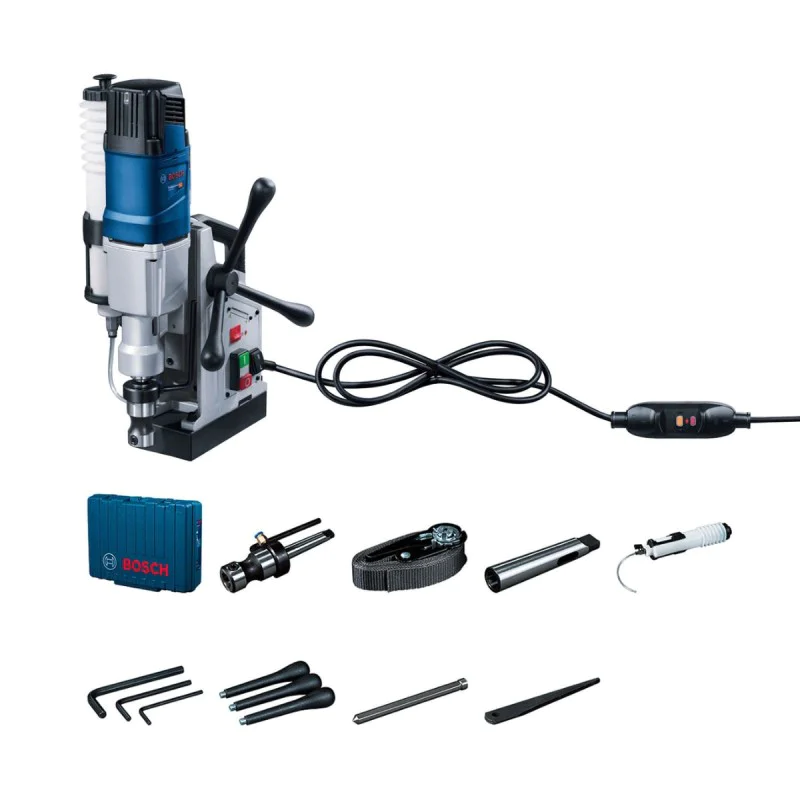

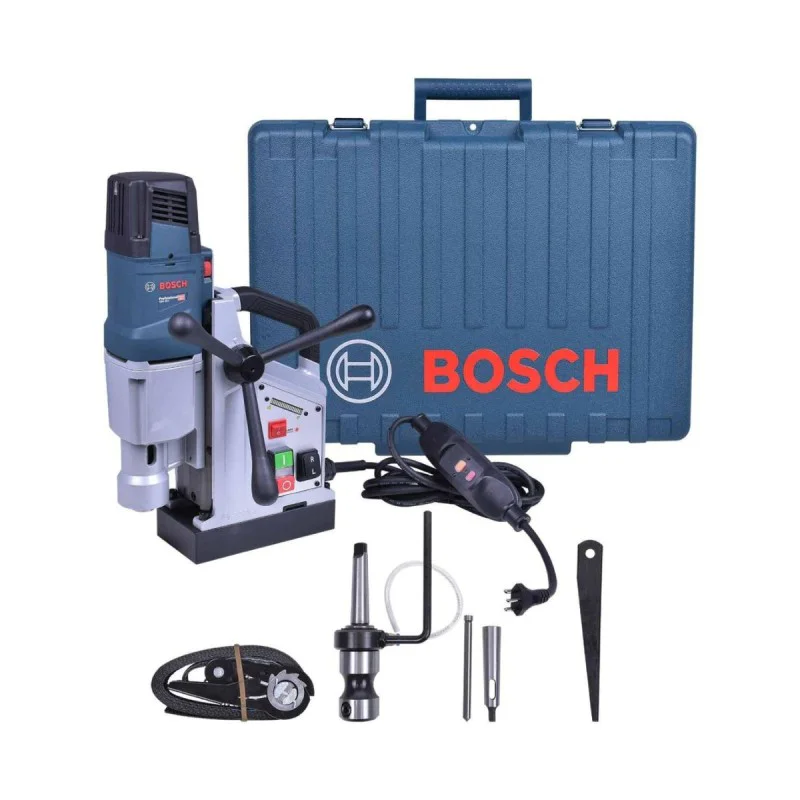

Included:

• 1 x Circular saw adapter (1 619 PB3 771)
• 1 x Guide pin (1 619 PB3 778)
• 1 x Coolant tank holder (1 619 PB4 127)
• 1 x Elbow handle (1 619 PB3 747)
• 1 x MT2 Morse taper (1 619 PB3 776)
• 1 x Reducing sleeve (1 619 PB3 777)
• 1 x Coolant reservoir (1 619 PB3 763)
• 1 x Safety strap (1 619 PB3 779)
• 1 x 3 mm hex key (1 619 PB3 772)
• 1 x 4 mm hex key (1 619 PB3 773)
• 1 x 6 mm hex key (1 619 PB3 774)

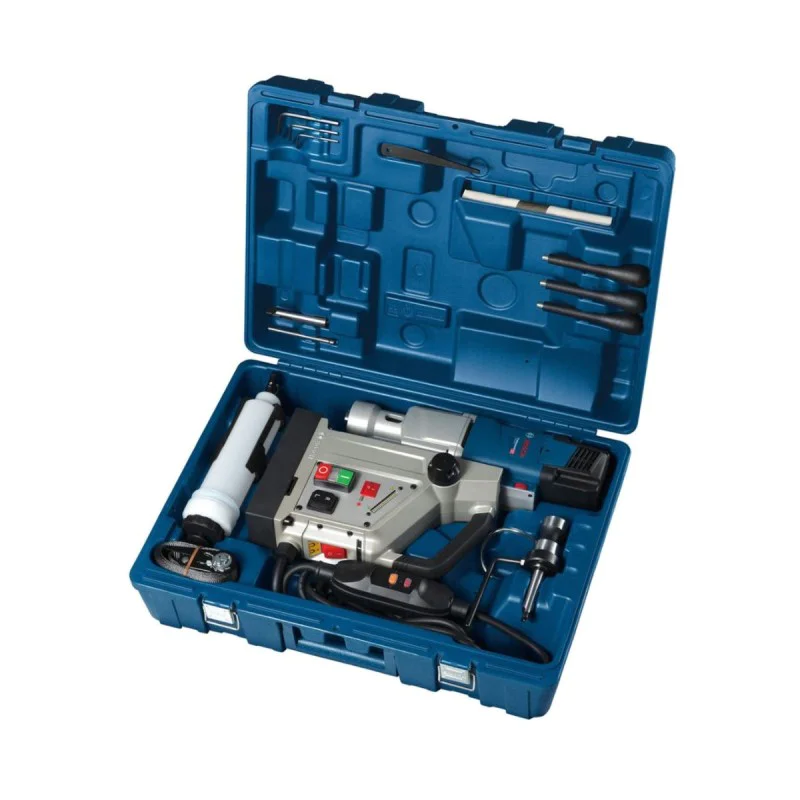

• 1 x Plastic carrying case
