Bosch GTC 600 C thermal camera 0601083500

Bosch GTC 600 C Thermal Imager

The Bosch GTC 600 C thermal imaging camera is a professional measuring instrument for visualizing temperature differences and facilitating the documentation of inspection results. The model is suitable for detecting insulation issues, as well as for locating unwanted hot or cold spots in various working environments. The device features high thermal resolution and a wide operating range, making it suitable for a variety of diagnostic tasks. The interface is designed to make operating the device quick and convenient, while voice notes, Wi-Fi, and USB-C facilitate data storage and transfer. This model is designed for field use and is built to withstand harsh conditions, including exposure to dust, water splashes, and accidental drops. The Bosch GTC 600 C uses a 12 V lithium-ion system and allows for convenient sharing of measured values via the manufacturer's compatible software solutions. It is suitable for professionals who require reliable thermal imaging, clear images, and structured documentation of measurements.

Technical specifications:

• Battery voltage: 12.0 V
• Measuring range: -20 °C to +600 °C
• Infrared measurement accuracy: ± 2.0 °C
• Thermal sensitivity (NETD): ≤ 50 mK
• IR sensor: 256 x 192 pixels
• Number of measurement points: 49,152
• Resolution: 0.1 °C
• Thermal image refresh rate: 9 Hz
• Internal image memory: 600 frames
• Image memory with audio: 350 frames
• Image format: .jpg
• Audio format: .wav
• Data transfer: Wi-Fi, USB-C
• Minimum focusing distance: 0.3 m
• Display: 3.5"
• Protection: IP54
• Drop resistance: up to 2 m
• Operating temperature: -10 °C to 45 °C
• Storage temperature: -20 °C to 50 °C
• Weight: 0.6 kg
• Net weight: 0.469 kg

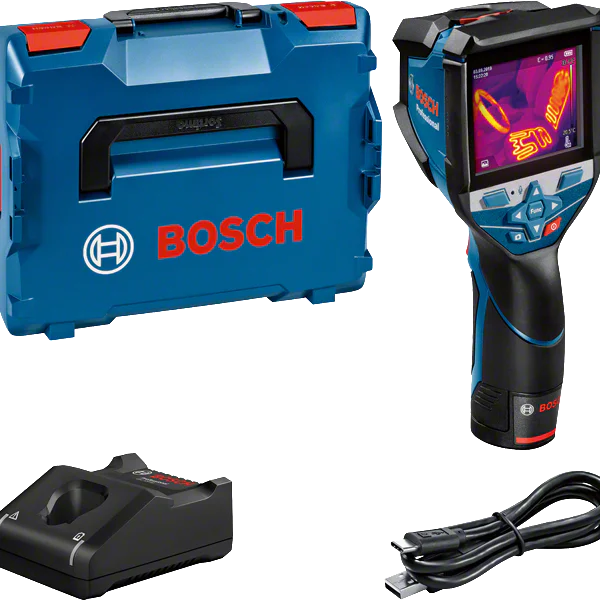

Contents:

• L-BOXX 136
• L-BOXX tool insert
• L-BOXX accessory tray
• USB-C® cable
• 1 x GBA 12V 2.0Ah rechargeable battery
• GAL 12V-40 Professional fast charger
