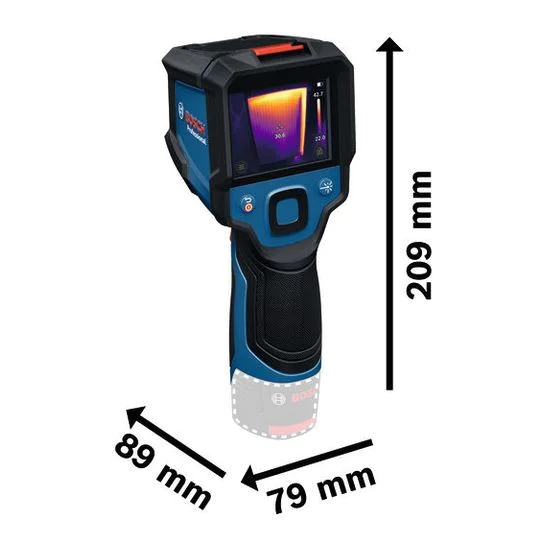

Bosch GTC 12V-450-13 thermal camera 0601083900

Bosch GTC 12V-450-13 Thermal Imager

The Bosch GTC 12V-450-13 thermal imager is a professional measuring device for quickly detecting and visualizing temperature differences in various working environments. This model is suitable for inspecting heating and air conditioning systems, locating pipes, inspecting electrical components, and performing diagnostics in service, industrial, and repair applications. The compact housing, clear 2.8-inch display, and quick startup support efficient on-site work, while the rugged construction is designed for heavy-duty professional use. The device also features a built-in laser, work light, and visual camera, which facilitate orientation and documentation during measurement.

Technical specifications:

• Measuring range: -20 °C to +450 °C
• IR measurement accuracy: ± 2 °C at the center point
• IR sensor: 256 x 192 pixels
• Number of measurement points: 49,152
• Thermal sensitivity (NETD): <=50 mK
• Field of view: 56° x 42°
• Resolution: 0.1 °C
• Display: 2.8 inches
• Thermal image refresh rate: 9 Hz
• Image memory: up to 500 files
• Image format: .jpg
• Data transfer: USB-C®
• Laser: Class 2, 645-660 nm
• Minimum target distance: 0.5 m
• Protection: IP54
• Drop resistance: up to 2 m
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -20 °C to +50 °C
• Weight: 0.35 kg
• Power supply: 12 V rechargeable battery or 4 x 1.5 V LR6 (AA)

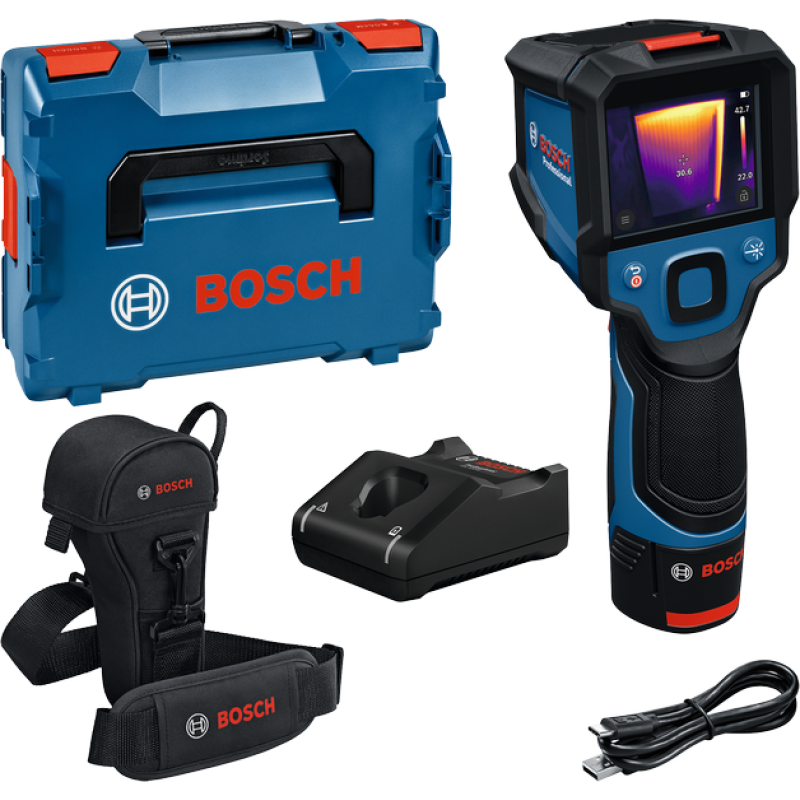

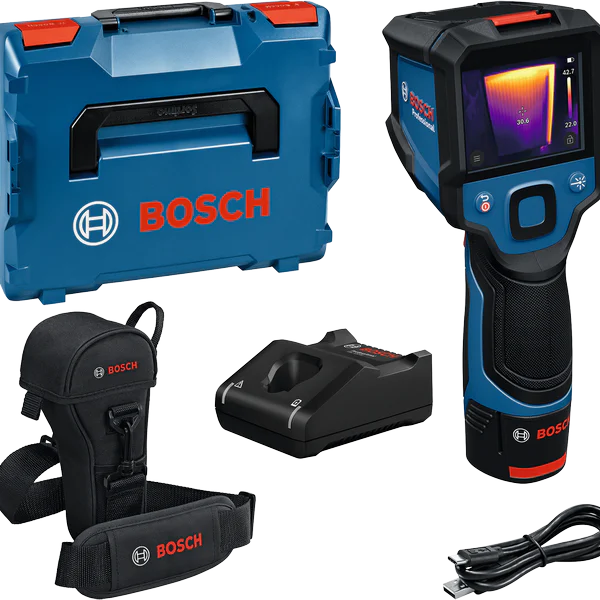

Package contents:

• L-BOXX 136 case with 1 GBA 12V 2.0Ah rechargeable battery
• GAL 12V-40 Professional fast charger
• USB-C® cable
• tool bag
• L-BOXX insert
