Bosch GRL 300 HVG Rotary Laser

The Bosch GRL 300 HVG rotary laser is a measuring tool for horizontal and vertical applications, designed for precise leveling in construction and installation work. The model uses a green laser beam, which provides significantly better visibility compared to standard red lines, and automatic self-leveling within a range of ±5° facilitates quick setup. The device features an optional vibration warning function that reduces the risk of errors caused by movement or vibrations during operation.

Technical specifications:

• Operating range: 100 m
• Operating range with receiver: 300 m diameter
• Accuracy: ±3.0 mm at 30 m
• Laser beam color: green
• Laser diode: 532 nm, < 5 mW
• Laser class: 3R
• Self-leveling range: ±5° (8%)
• Leveling time: 15 s
• Rotation speeds: 150 / 300 / 600 min-1
• Power supply: 2 x 1.5 V LR20 (D)
• Protection rating: IP54
• Operating temperature: 0 - 40 °C
• Storage temperature: -20 - 70 °C
• Weight: approx. 1.8 kg
• Compatible laser receiver: LR 1G
• Tilt function: no

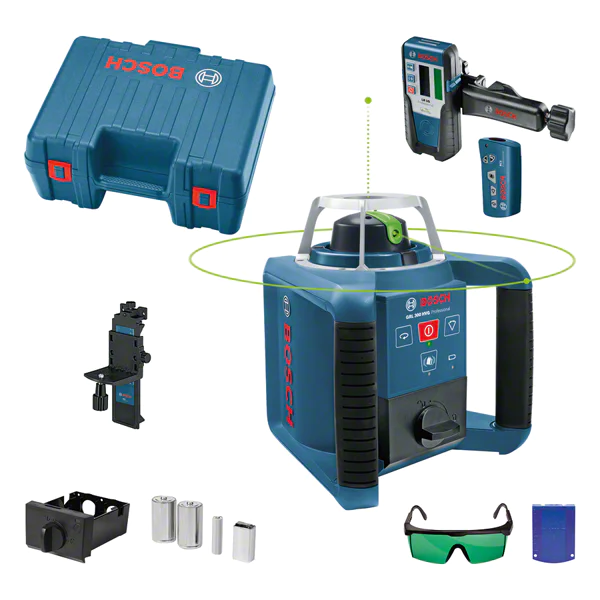

Package contents:

• Carrying case
• LR 1G Professional receiver
• RC1 Professional remote control
• WM 4 Professional universal mount
• clamp
• laser target
• green goggles for better visibility
• 1 x 1.5 V LR6 (AA) battery
• 1 x 9 V battery (Crown type) (6LR61)
• 2 x 1.5 V LR20 batteries (D)
