Bosch GRL 300 HV rotary laser 0601061501

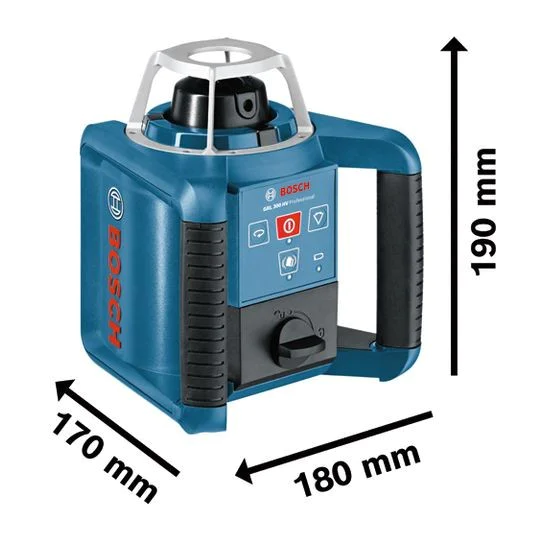

Bosch GRL 300 HV Rotary Laser

The Bosch GRL 300 HV rotary laser is a measuring tool for horizontal and vertical applications, designed for precise leveling in construction and installation work. The model features automatic self-leveling within a range of ±5° (8%), a clear control panel, and a vibration warning function that helps prevent deviations during operation. The device offers a working range of up to 300 m in diameter with a receiver and up to 60 m without a receiver, making it suitable for indoor and outdoor applications. The laser operates with a red beam, is Class 3R, has an IP54 protection rating, and weighs approximately 1.8 kg; it is powered by 2 LR20 (D) batteries.

Technical specifications:

• Operating range with receiver: 300 m (diameter)
• Operating range without receiver: 60 m (diameter)
• Accuracy: ± 3.0 mm at 30 m
• Self-leveling range: ±5° (8%)
• Leveling time: 15 s
• Rotation speed: 150 / 300 / 600 min-1
• Laser diode: 635 nm, < 5 mW
• Laser line color: red
• Laser class: 3R
• Protection: IP54
• Operating temperature: -10 to 50 °C
• Storage temperature: -20 to 70 °C
• Power supply: 2 x 1.5 V LR20 (D)
• Weight: approx. 1.8 kg
• Tilt function: no

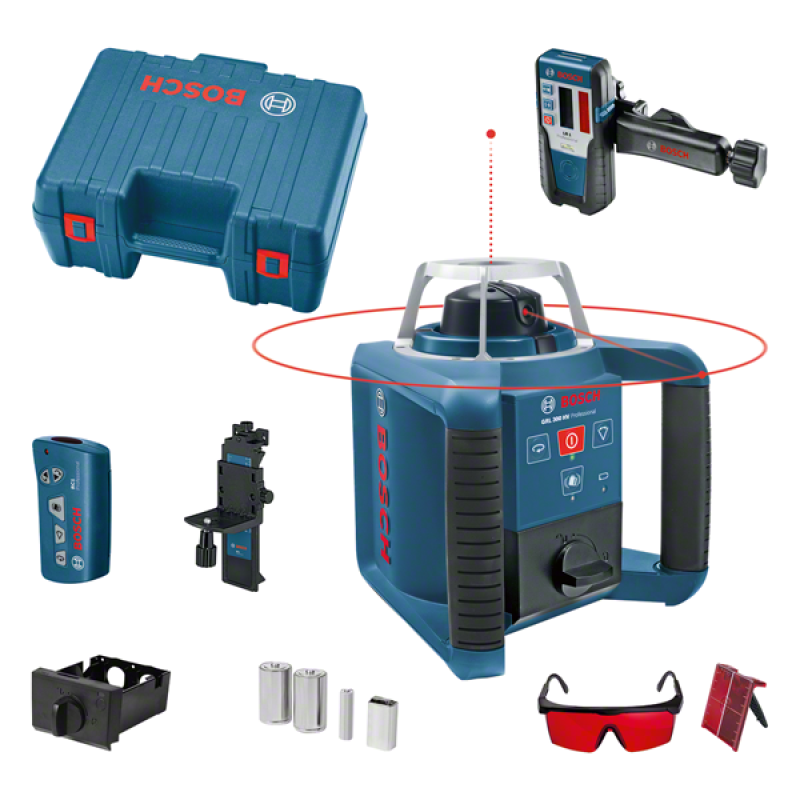

Included:

• Carrying case
• WM 4 Professional universal stand
• RC1 Professional remote control
• Laser receiver LR 1 Professional
• 1 x 9 V battery (6LR61)
• 1 x 1.5 V LR6 (AA)
• 2 x 1.5 V LR20 (D)
• Red laser goggles
• Red laser target
