Bosch GOL 32 G Professional level set, 601068501, 120 m

Bosch 601068501 Optical Level

Description:

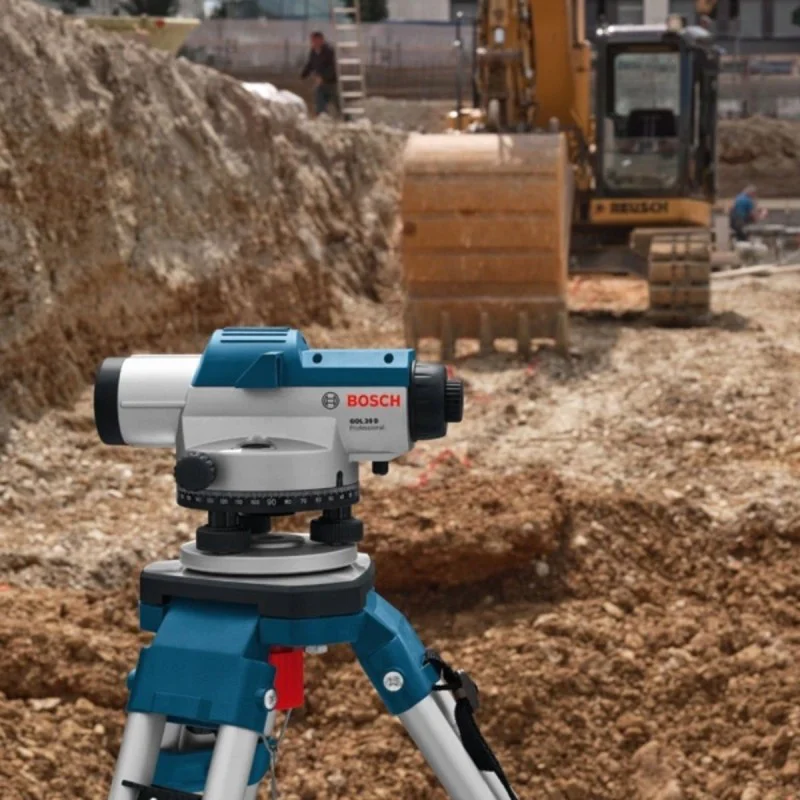

The Bosch GOL 32 G Professional
optical level set
is ideal for outdoor use thanks to its dust and splash protection (IP 54) and robust construction. The device features a built-in collimator for precise targeting and a circular bubble level for convenient leveling. The compensator locking device ensures safe transport, and the pentaprism allows for easy reading of the circular bubble level. The illuminated lens ensures clear reading of the values on the leveling rod even at long distances. The instrument offers high accuracy of 1 mm/30 m and the ability to infinitely adjust the scale in degrees and angles via a convenient friction clutch accessible from both sides. The large knob for easy alignment further simplifies operation.

Technical specifications:

• Magnification: 32x
• Leveling accuracy: 1.0 mm at 30 m
• Standard deviation: 1.0 mm/km (with double leveling)
• Working range: up to 120 m
• Minimum target distance: 0.3 m
• Objective lens diameter: 36 mm
• Functional range: ±15'
• Dust and splash protection: IP54
• Tripod thread: 5/8"
• Operating temperature: -10 to 50 °C
• Storage temperature: -20 to 70 °C
• Dimensions (L x W x H): 215 x 135 x 145 mm
• Weight: 1.7 kg

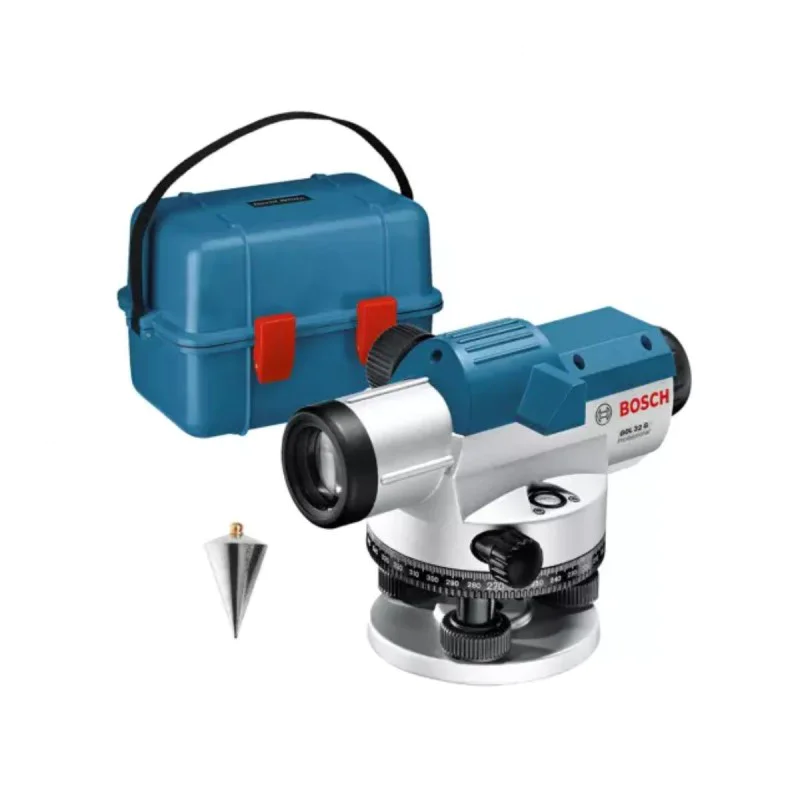

Included:

• 1 x Lens protection
• 1 x Adjustable mandrel
• 1 x Plumb bob
• 1 x Hex key
• 1 x Plastic carrying case
