Bosch GCL 2-15 Combination Point and Line Laser 0601066E00

Bosch GCL 2-15 Combined Point and Line Laser

The Bosch GCL 2-15 combined point and line laser is designed for leveling and transferring reference points when working at short distances. The model projects a horizontal and vertical laser line, as well as two centered plumb points, making it suitable for installation and finishing work indoors. The device features self-leveling up to ±4° and allows you to choose between line and point modes depending on the specific task. The design is compact and comfortable for one-handed operation, and the intuitive interface facilitates daily use. The rotating RM 1 Professional mount aids in the precise positioning of the laser lines, and the pendulum lock ensures safer transport and storage. The housing has an IP54 protection rating against dust and water splashes. The model is a practical solution for alignment, vertical transfer, and marking tasks when a clear combination of lines and plumb points is required in a single compact tool.

Technical specifications:

• Working range: 15 m
• Laser dot working range: up to 10 m upward and 10 m downward
• Leveling accuracy: ± 0.3 mm/m
• Vertical point accuracy: ± 0.7 mm/m
• Self-leveling range: ± 4°
• Leveling time: 4 s
• Laser class: 2
• Laser diode: 630-650 nm, < 1 mW
• Projection: 2 lines / 2 points
• Protection rating: IP54
• Power supply: 3 x 1.5 V LR6 (AA)
• Maximum operating time: up to 22 hours depending on mode
• Tripod thread: 1/4", 5/8"
• Weight: approx. 0.49 kg
• Dimensions: 130 x 83 x 162 mm

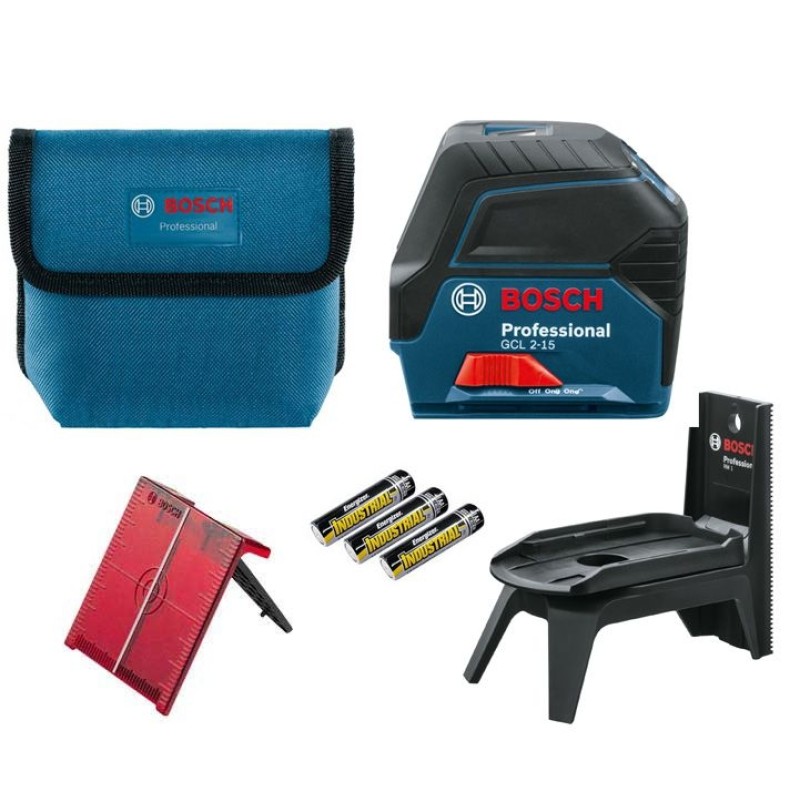

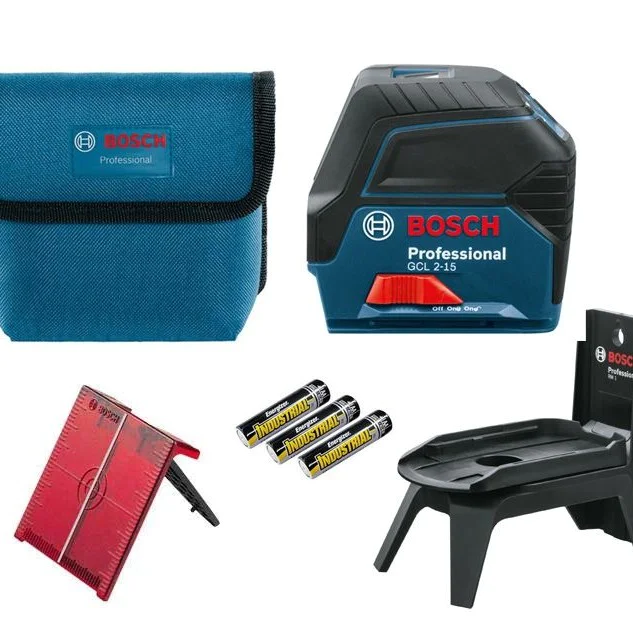

Included:

• 3 x 1.5 V LR6 (AA) batteries
• RM 1 Professional Rotating Mount
• Laser target
• Carrying case
• Box
