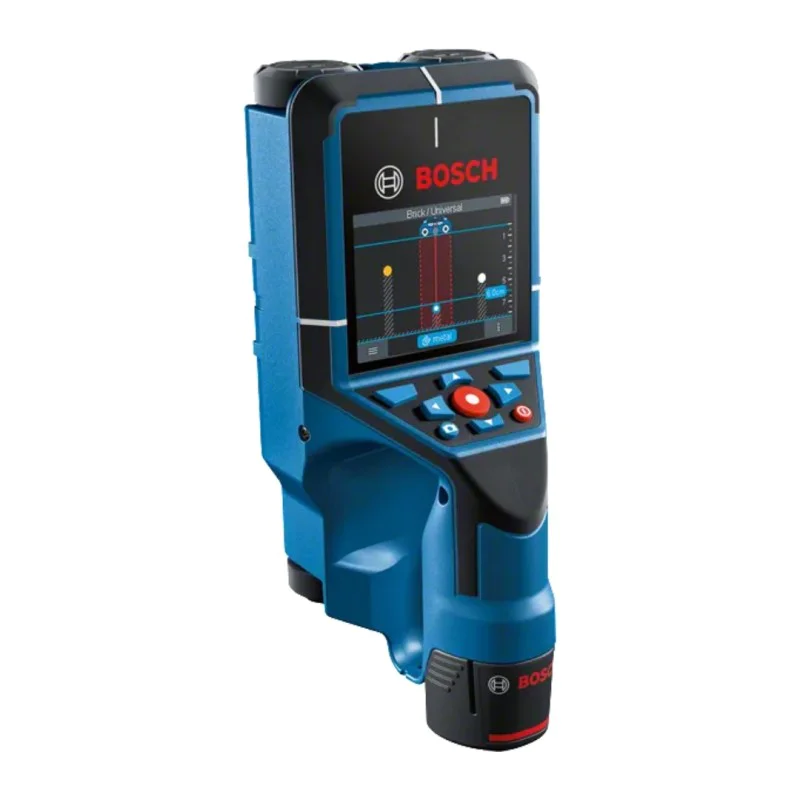

Bosch D-tect 200 C detector 0601081601

Bosch D-tect 200 C Detector

The Bosch D-tect 200 C detector is a professional device for detecting objects in walls, floors, and building elements, designed to ensure safer drilling and more accurate inspection of various substrates. The model uses Bosch radar technology and a color interface that clearly displays detected objects and aids in the correct interpretation of results. It is suitable for both indoor and outdoor use, including applications involving the detection of metal, cables, plastic pipes, and wooden substructures. The device offers several display modes, including Object View, Point View, Signal View, and Signal View 2D, which facilitate scanning in various situations and hard-to-reach areas. Data can be documented via USB-C and an SD card, and the screen capture feature helps with easier tracking and archiving of results. The detector also displays the depth of the detected object, which is useful for planning drilling and installation.

Technical Specifications:

• Maximum detection depth: 200 mm
• Depth in dry concrete: up to 200 mm
• Depth in fresh concrete: up to 60 mm
• Depth in other types of walls: up to 80 mm
• Depth in wooden structures: up to 38 mm
• Accuracy: ±5 mm
• Detectable objects: magnetic and non-magnetic metals, live cables, dead cables, empty plastic pipes, plastic pipes containing water, wooden structures
• Power supply: 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) or 4 x 1.2 V HR06 (AA)
• Connectivity and documentation: USB-C, SD card
• Protection rating: IP 5X
• Weight: approximately 0.7 kg
• Additional features: leak detection, distance measurement

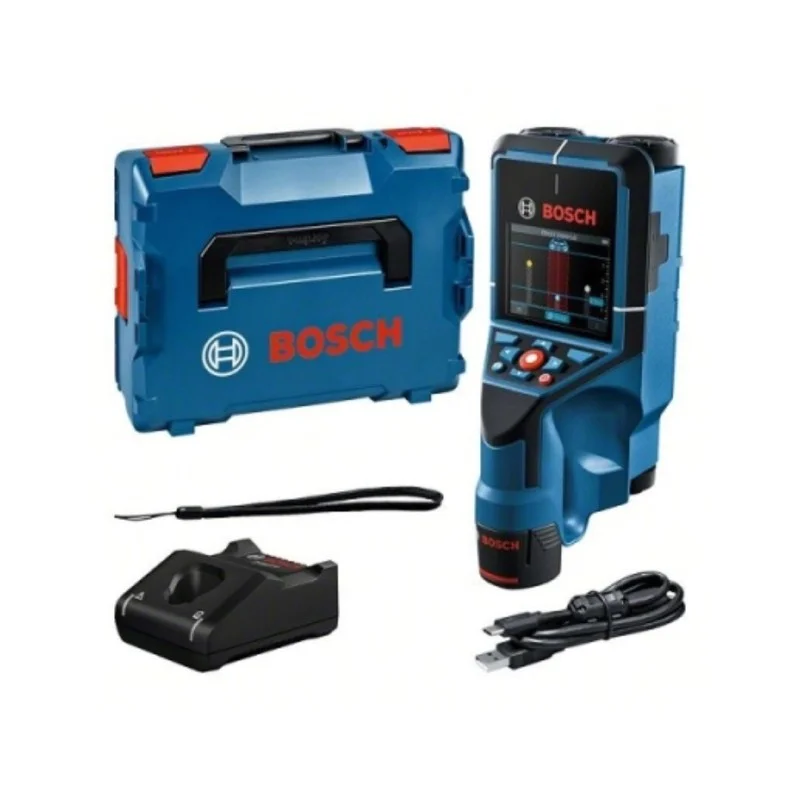

Package contents:

• L-BOXX 136
• 1 GBA 12V 2.0Ah battery
• GAL 12V-40 Professional quick charger
• Wrist strap
• USB-C cable
