Bosch D-tect 200 C detector 0601081600

Bosch D-tect 200 C Detector

The Bosch D-tect 200 C detector is a professional wall scanner for the precise detection of common objects in various building materials. The model uses Bosch radar technology and offers a clear user interface with multiple display modes, which facilitates work during pre-drilling checks, repair activities, and documentation of results. The device is suitable for both indoor and outdoor use, helping to prevent damage during drilling and allowing for the measurement of concrete cover. The screenshot function and the ability to transfer data via USB-C and microSD card provide additional convenience for reporting and tracking completed inspections. The device also displays the depth of the detected object, making it a practical solution for construction, installation, and service applications.

Technical Specifications:

• Technology: Bosch Radar Technology
• Detectable objects: magnetic metals, non-magnetic metals, live cables, dead cables, empty plastic pipes, water-filled plastic pipes, wooden substructures
• Maximum detection depth: 200 mm
• Detection depth in dry concrete: up to 200 mm
• Detection depth in fresh concrete: up to 60 mm
• Detection depth in other types of walls: up to 80 mm
• Detection depth in wooden structures: up to 38 mm
• Accuracy: ± 5.0 mm
• Display modes: Object view, Spot view, Signal View 2D, Signal View
• Supported wall types: brick/universal, concrete, drywall, floor/panel heating, fresh concrete, horizontal hollow bricks, vertical hollow bricks
• Protection: IP 5X
• Power supply: 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
• Data transfer: USB-C, microSD card
• Weight: approx. 0.7 kg
• Additional features: leak detection, distance measurement

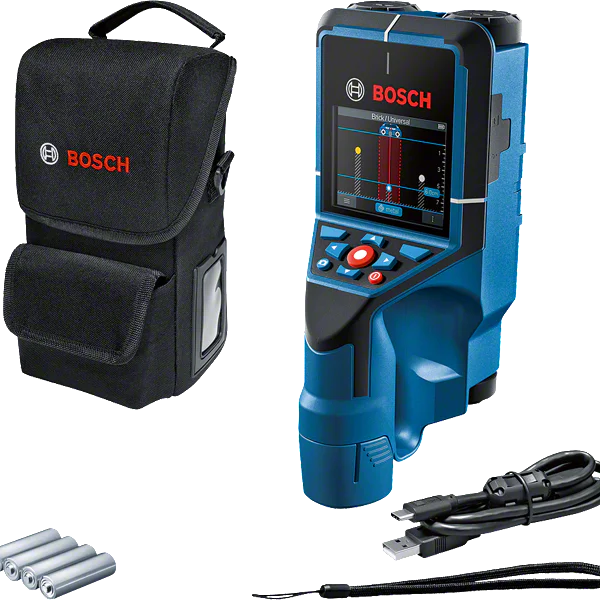

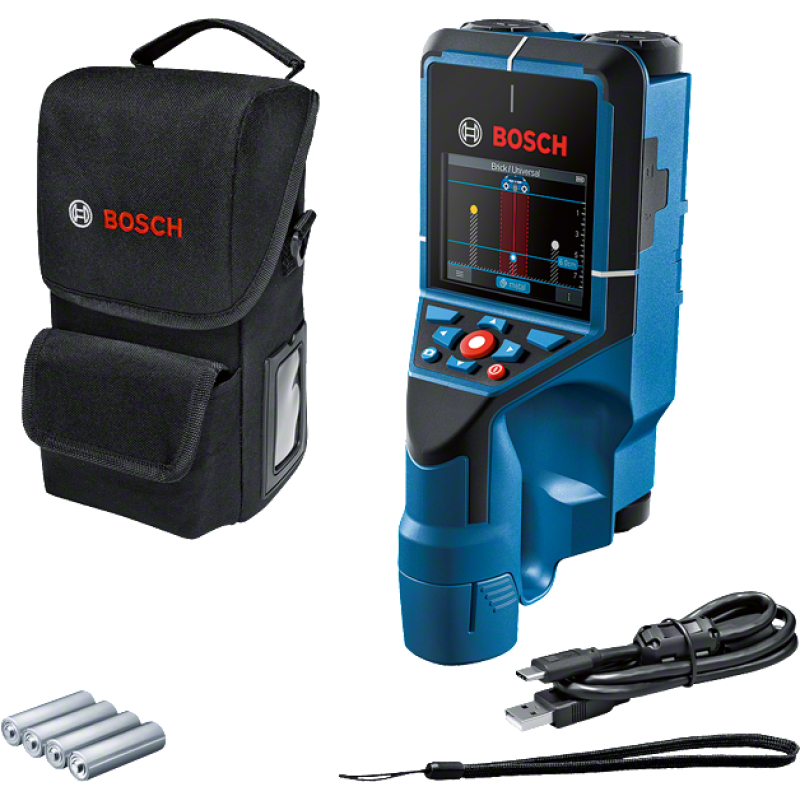

Included:

• hand strap
• USB-C cable
• 4 AA batteries
• case
• battery adapter
