Cordless Impact Drill Driver Bosch GSB 120-LI Professional, 12 V, 30 Nm, 2 x 2.0 Ah, Case - 06019G8102

Bosch GSB 120-LI Professional Cordless Impact Drill Driver, 06019G8102

The Bosch GSB 120-LI Professional is a 12 V cordless impact drill driver with a keyless chuck and a hammer mechanism. According to the manufacturer the tool delivers flexibility for driving and drilling in wood, steel, plastic and masonry and offers reliable Bosch quality to professionals across a wide range of applications. The part number 06019G8102 designates the specific version of the kit.

Two-speed gearbox

The optimised 2-speed gearbox delivers high performance with excellent torque. First gear runs at 0 - 400 min^-1 and is for driving and for large-diameter drilling; second gear reaches 0 - 1,500 min^-1 for fast drilling. The maximum impact rate is 22,500 min^-1.

Torque and settings

Bosch states a torque of 14 Nm soft and 30 Nm hard. The collar has 20+2 settings - twenty torque-limiting steps plus a drilling position and an impact drilling position. The chuck clamping range is 0.8 - 10 mm.

Electronic Cell Protection

The Electronic Cell Protection system protects the battery against undervoltage, excessive current draw and deep discharge. According to the manufacturer this extends the service life of the battery and increases the durability of the tool. The tool weighs 0.9 kg without the battery.

Scope of supply of this version according to Bosch

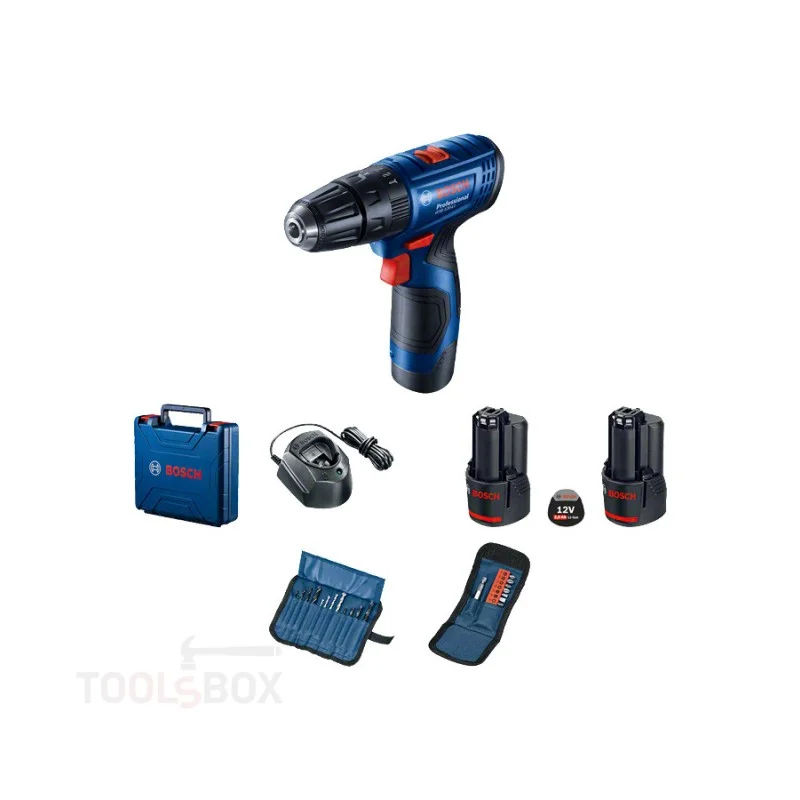

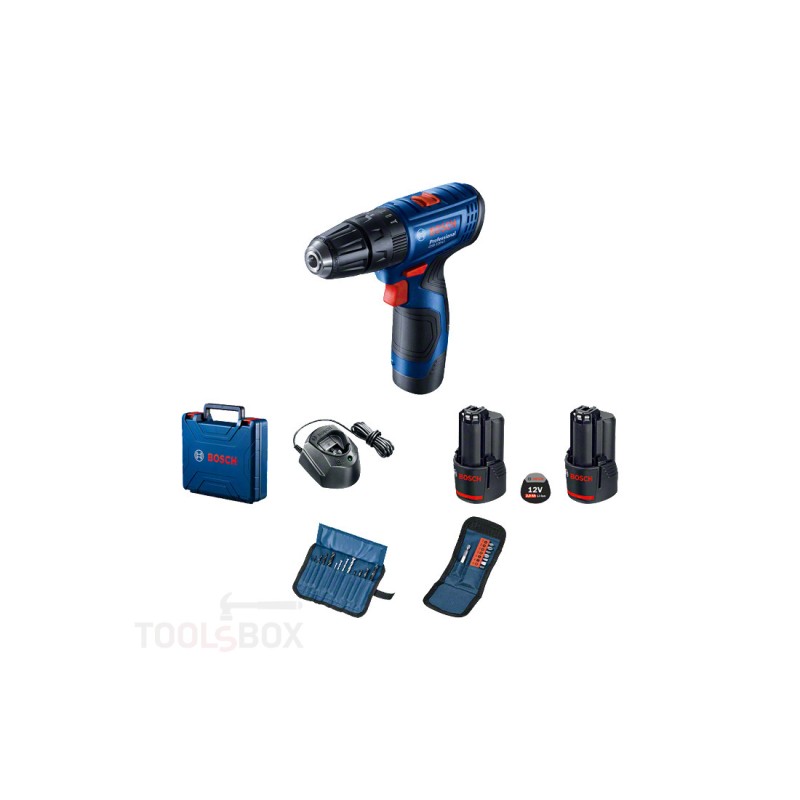

For part number 06019G8102 Bosch describes the version as "in case with 2 x 2.0 Ah lithium-ion battery, charger", and lists in the details: 2 x GBA 12V 2.0 Ah battery, GAL 1210 CV Professional charger, tool case and a 23-piece drill and bit set with holder.

Vibration figures according to the manufacturer

The total vibration values measured by Bosch are: drilling into metal 1.5 m/s² (uncertainty K 1.4 m/s²), impact drilling into masonry 10.2 m/s² (K 1.5 m/s²) and screwdriving 1.5 m/s² (K 0.8 m/s²).

Applications

The tool is for installation, maintenance and repair: driving screws into wood and metal, drilling holes up to the 10 mm chuck capacity and impact drilling in brick and concrete block. Bosch lists it as suitable for electricians, drywallers, plumbing and HVAC specialists, builders and building maintenance.

Technical specifications

Questions and Answers
