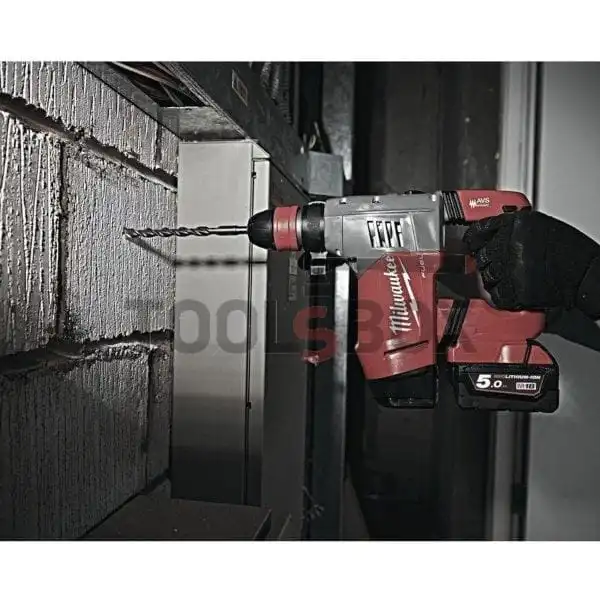

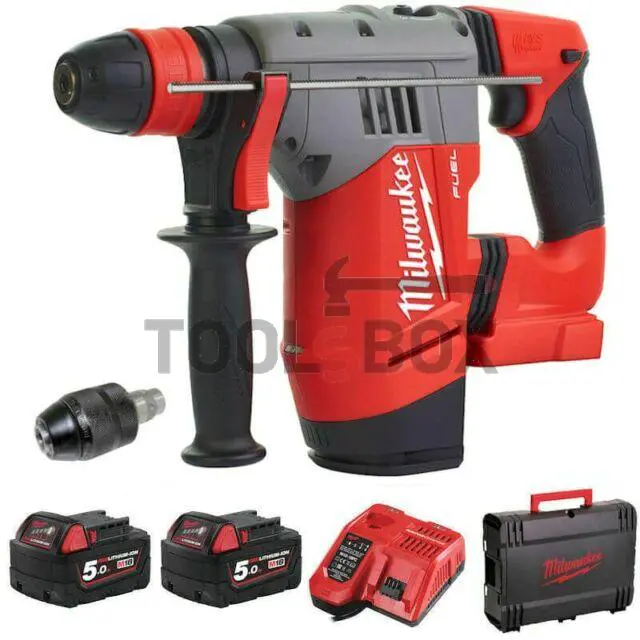

Milwaukee Cordless Punch M18CHPX-502X / M18 FUELTM, SDS-PLUS 4933451380

Manufacturer:

Milwaukee

Model:

M18 CHPX-502X

3-year warranty after registration

Description:

Milwaukee Tool designed and built-in brushless POWERSTATETM motor. The intelligent REDLINK PLUSTM system provides advanced digital overload protection for the tool and battery and uniquely enhances tool performance under load. The REDLITHIUMTM-ION battery features superior pack design, electronics, and fade-free performance to deliver more runtime and more work over the life of the battery. A powerful motor delivers corded-tool performance. The most powerful SDS cordless hammer in its class. A powerful hammer mechanism delivers 4.0 J (EPTA) of impact energy with low vibration of 8.6 m/s2 thanks to the new dual-rail anti-vibration system. All-metal gear housing-optimal gear arrangement for longer service life. 4 operating modes: rotary hammer, hammer-only, rotation-only, and selectable chisel position (Variolock) for maximum flexibility. FIXTECTM system-keyless chuck change. Individual monitoring of battery cells optimizes tool runtime and ensures the longevity of the battery pack. The display shows the remaining charge. Compatible with the M18-28 CPDEX dust extractor. Flexible battery system: works with all MILWAUKEE® M18TM batteries.

Technical Specifications:

Battery Capacity (Ah): 5.0

Battery type: Li-ion

Blow energy (EPTA) (J): 4.0

Charging time: 59 minutes

Max. concrete drilling (mm): 28

Max. drilling capacity in steel (mm): 13

Max. drilling capacity in wood (mm): 30

Max. drilling capacity in wood/steel/concrete (mm): 30/13/28

Max. impact rate (bpm): 0 - 5000

No-load speed (rpm): 0 - 1350

Sound power level (dB(A)): 102.1

Uncertainty of sound power level (dB(A)): 3

Sound pressure level (dB(A)): 91.1

Uncertainty of sound pressure level (dB(A)): 3

Vibration acceleration in concrete [m/s2]: 1.5

Number of batteries supplied: 2

Optimized drilling capacity in concrete (mm): ø 7 - 22

Standard equipment: Side handle, depth stop, grease, FIXTECTM 13 mm metal chuck

Supplied in a carrying case

Vibration chisel (m/s2): 7.1

Vibration uncertainty during chiseling (m/s2): 1.5

Vibration drilling (m/s2): 8.6

Voltage (V): 18

Weight with battery (kg): 4.3
